RB-3646 Direct to Garment T-shirt Printing Machine
| Model | RB-3646T T-shirt printer |
| Printing head | Drop on Demand technology, TX800 print heads |
| Printing resolution | 5760DPI |
| Printing size | 360*460mm |
| Production capacity | 4 tx800/dx10 heads: 50-80 t-shirts/hour |
| Printing cost | Light fabric: 0.04$/A4 full size |
| Dark fabric: 0.2$/A4 full size | |
| Wash fastness | Level 4 prevent fade from long time wash or sun exposure |
| Operation | Fully automatic |
| Ink | textile/edible/eco solvent ink |
| Voltage | 110-220V 50-60HZ 300W |
| Printing material | Cotton, hemp, silk, modal, aldell, rayon and man-made fiber |
| Printing interface | USB 2.0、IEEE 1394 |
| Operation system | Windows |
| Normal working environment | Temperature 10-35Celsius Humidity 20-80RH |
| Max printing height | 12CM |
| Net weight | 250Kg |
| Gross weight | 300Kg |
| Printing Software | Rip |
| Name | RB-3646 DTG Printer |

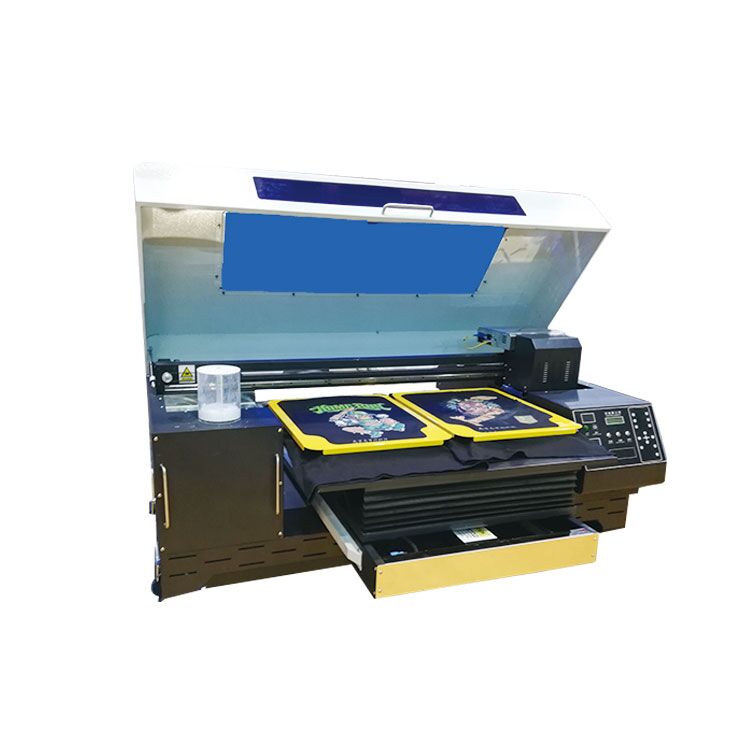

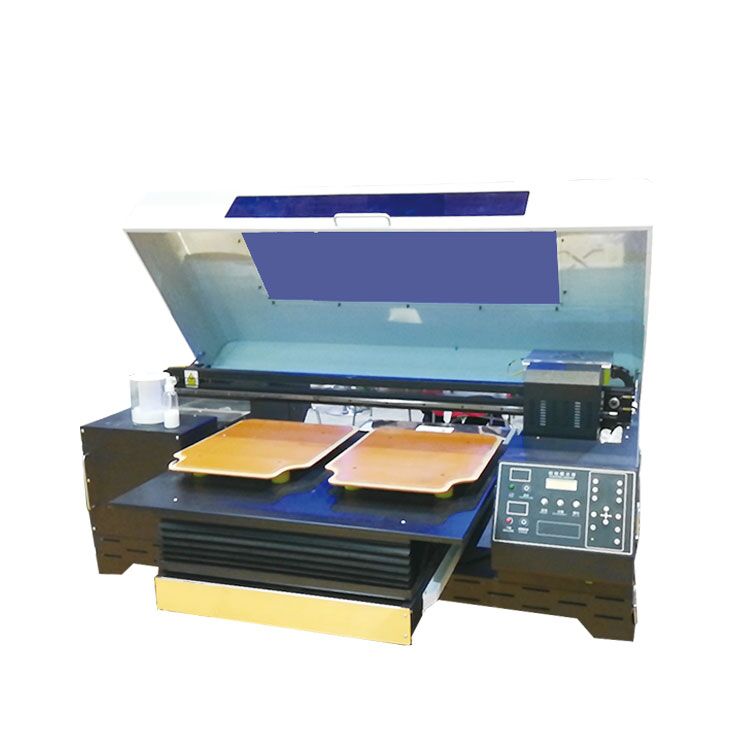

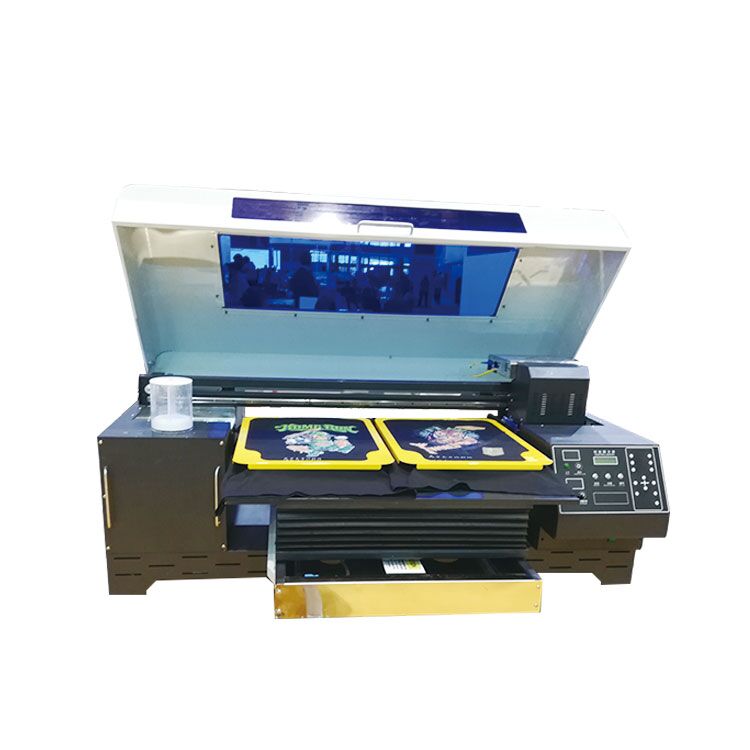

Direct to Garment DTG Printer Machine:
Magnetic fast dtg printer a2 size dtg T-shirt printer textile printing machine made by Rainbow Digital. It can print on the garment like T shirt and hoddies with vivid color and fast speed. Because the dtg t-shirt printer has 4 TX800 print heads, so that it can print on dark garment with 4*CMYK+WW or on white color t-shirt CMYK*4 to get fast industrial printing speed. Also the dtg printer has white ink automatic circulation system to prevent white ink get clog and come out smoothly all the time.
1. 1.Magnetic high speed dtg printer a2 dtg printer t-shirt printing machine has 1L big ink volume tank for CMMY+White+Lc+Lm ink, so that it can print large quantity t shirts and does not need to refill the ink very frequently.
2..White and color print by one pass with quick speed—another main advantage of RB-3646 a2 dtg t-shirt printer is that it can print white ink and color by one pass with 4 heads which can save much more time when print dark materials and increase capacity.
3. This digital dtg garment printer uses TCP/IP Ethernet cable interface, so it can via TCP/IP Ethernet cable let the data processing faster than traditional USB 2.0/3.0 way.
3.WIPS white ink processing system-Newest WIPS white ink processing system also created for direct to garment printer, digital apparel printer, digital t-shirt printer to print with white ink to dark media, it is a good solution for titanium white ink settling and head clog, there are include White Ink Shaking System, White Ink Circulation System, One Step Flushing System. The shaking speed, shaking time, circulation flow rate, circulation time are also adjustable.
4.Ball Screw RB-3646 A2 size direct to garment dtg t-shirt printer’s up-down flatbed is with water level four high quality ball screw.
5.The dtg t-shirt printer equip with control panel-7 inch control panel, even fresh worker can easy and conveniently operate the machine. Customer can learn it very fast with instruction.
6. The machine design is very environmentally friendly. The cover can be open any time to clean, and the shape is not big which is do not take much space of room.
