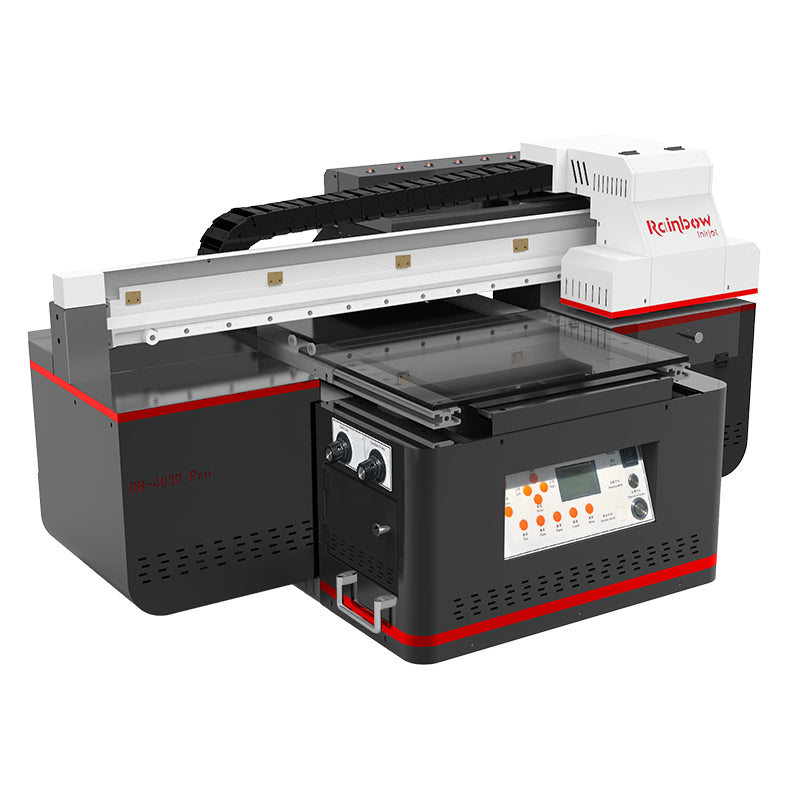

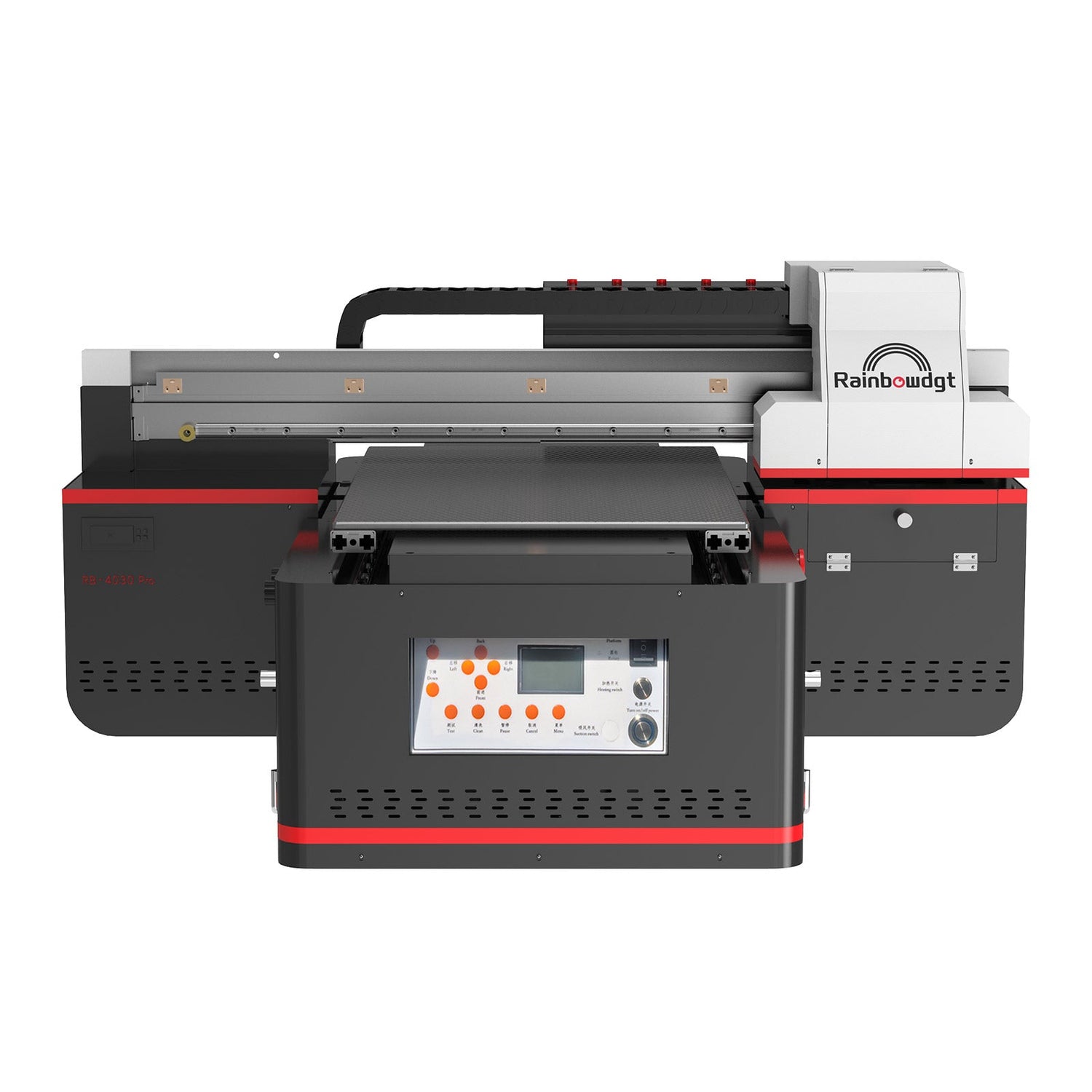

RB-4030 PRO A3 UV Printer

RB-4030 PRO A3 UV Printer

Regular price $3,999.00 USD
Regular price Sale price $3,999.00 USD
Sale Sold out

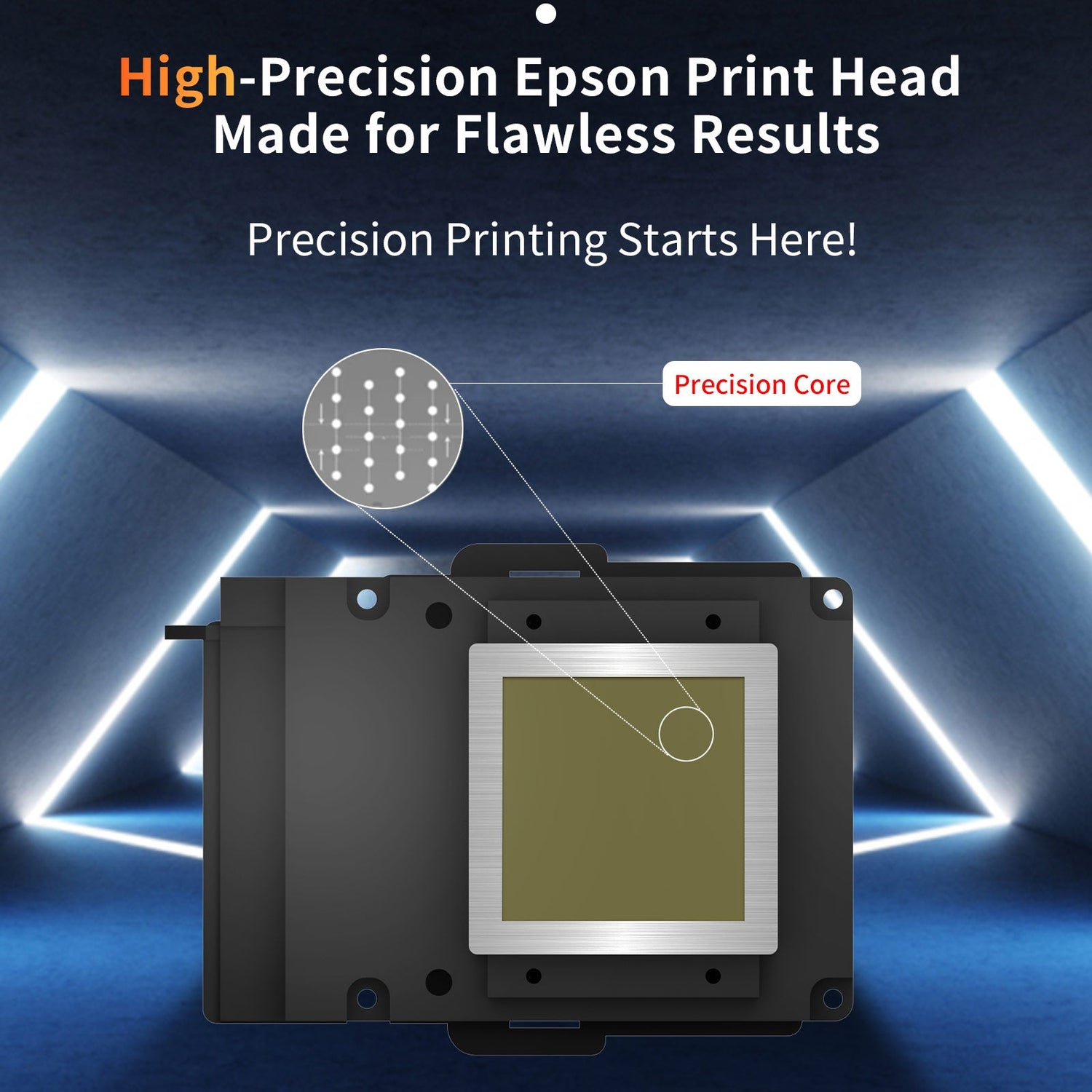

Printhead

Overview

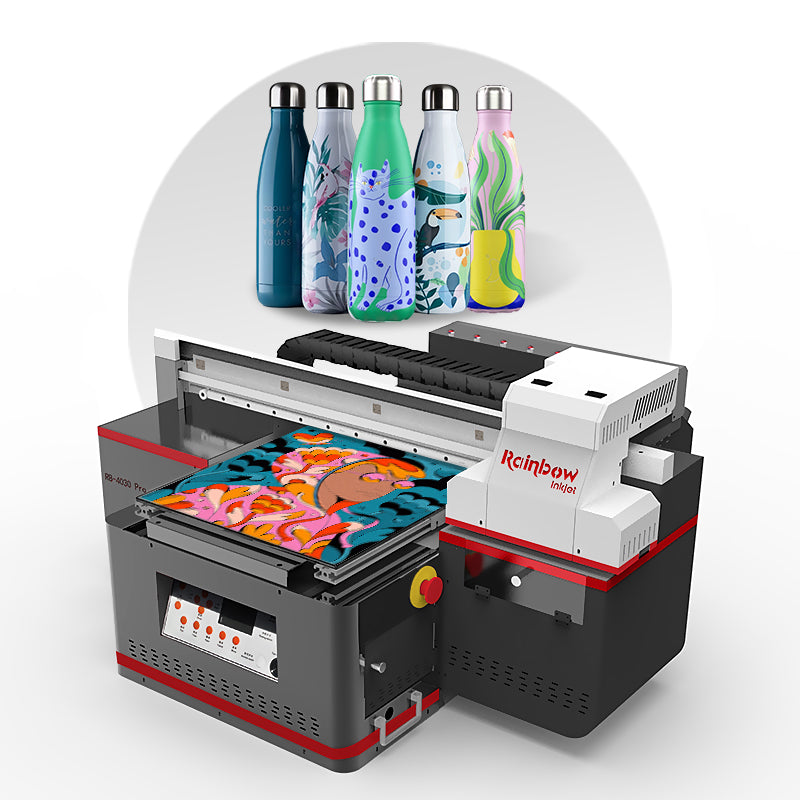

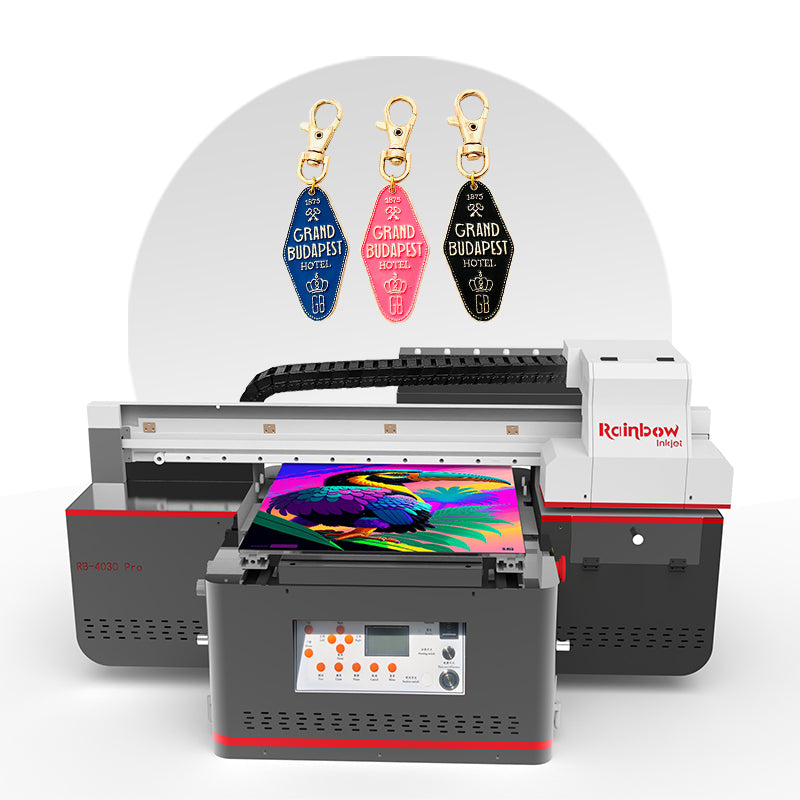

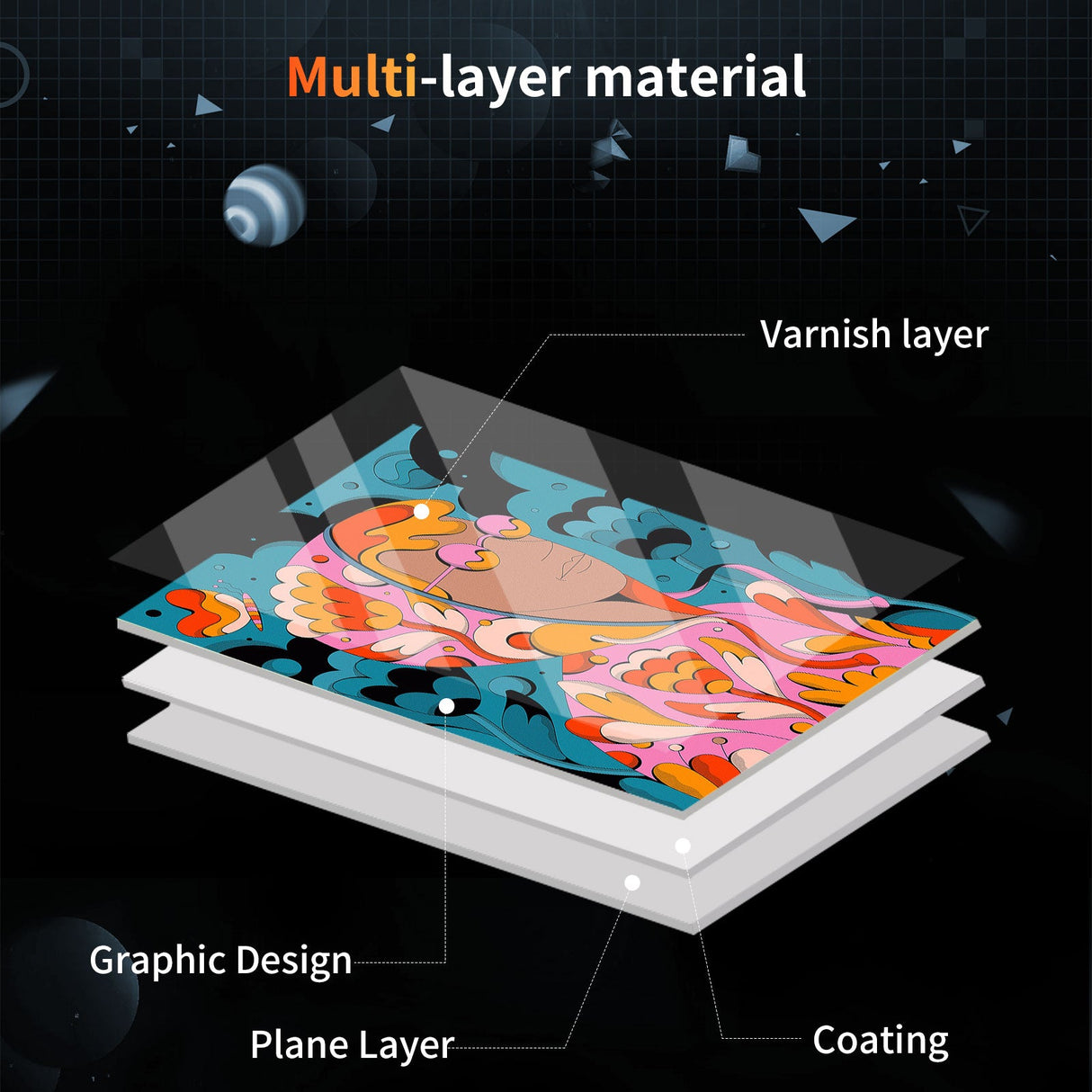

RB-4030 Pro A3 UV flatbed printer has two options of single and double heads, their difference on printing speed and vanish effect. Single head option can print CMYKW while double heads can print CMYKW+Vanish. They both are very competitive on price because they can print on metal, wood, pvc, plastic, glass, crystal, stone and rotary. Rainbow Inkjet UV printer vanish, matte, reverse print, fluorescence, bronzing effect are all supported. Besides, RB-4030 Pro support direct to film print and transfer to materials above, therefore many non-planar substrates print problem is conquered.

Print height: Substrate 5.9″ /Rotary 3.14″
Print size: 15.7″*11.8″
Print resolution: 720dpi-2880dpi (6-16passes)
UV ink: Eco type for cmyk plus white,vanish, primer, 6 level scrachproof,waterproof

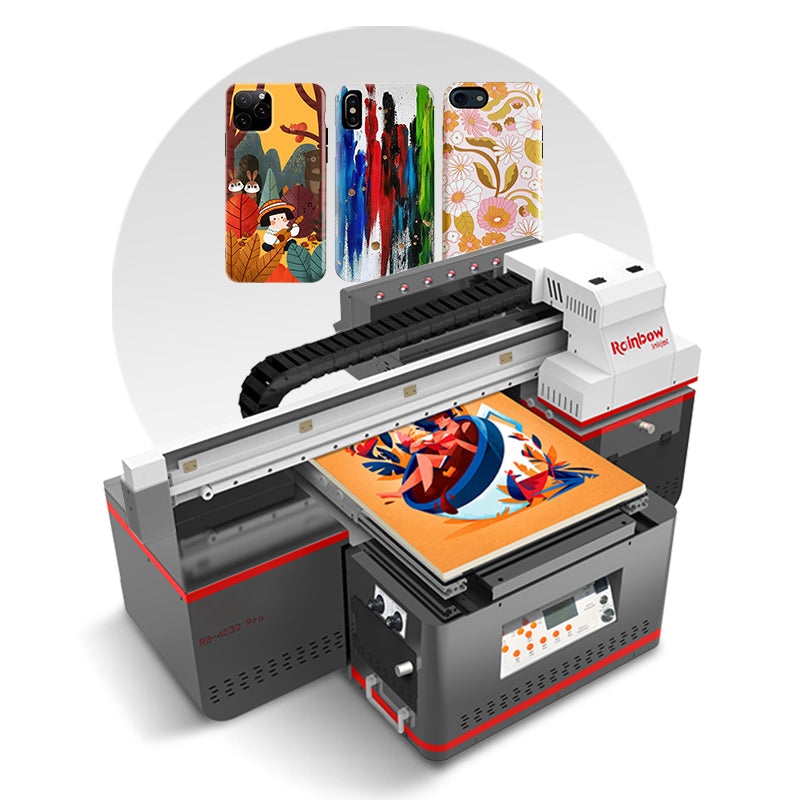

Applications: For custom phone cases,metal, tile, slate, wood, glass, plastic, pvc decor, special paper, canvas art, leather, acrylic, bamboo and more

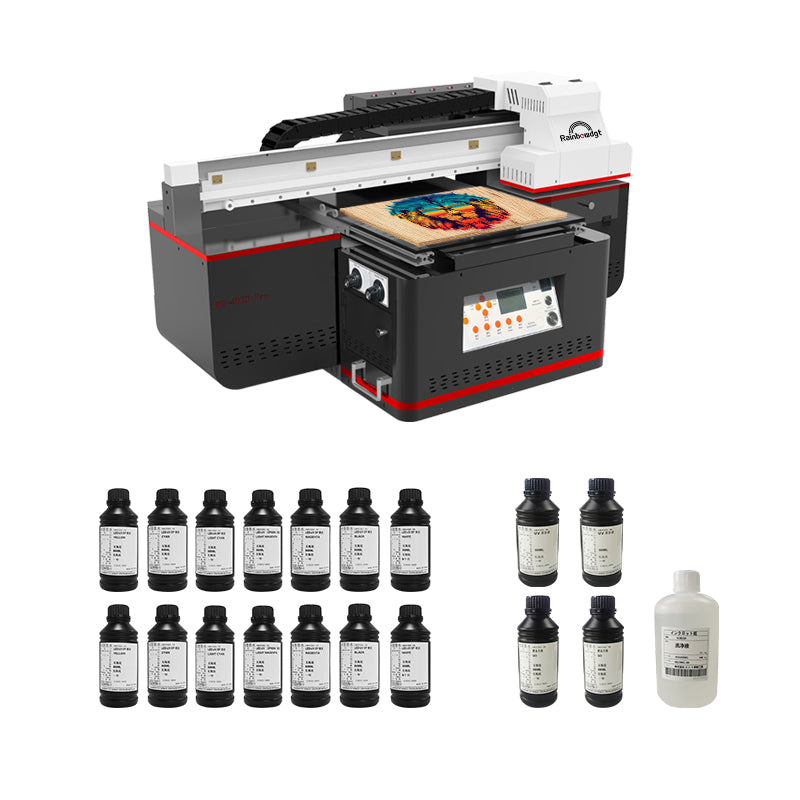

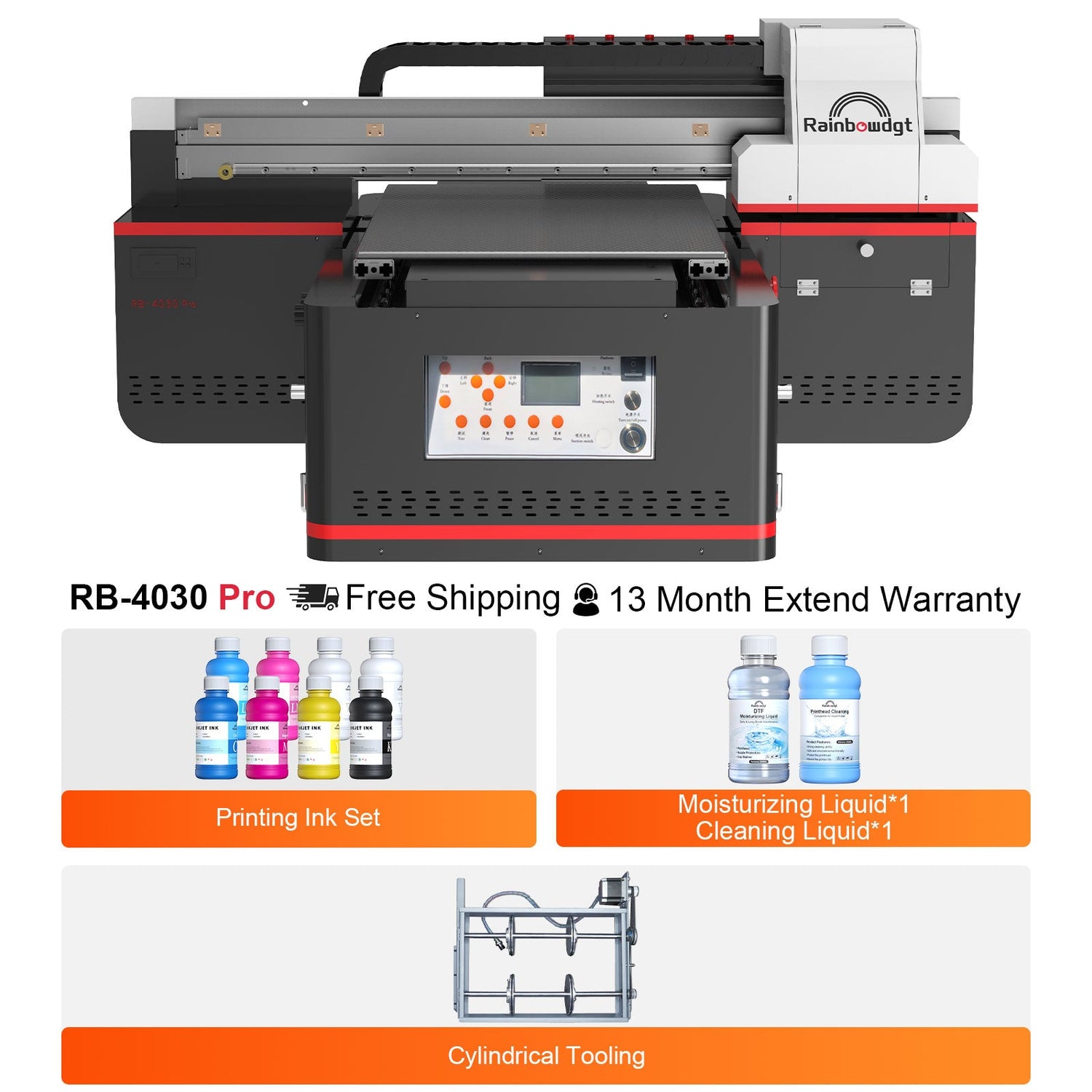

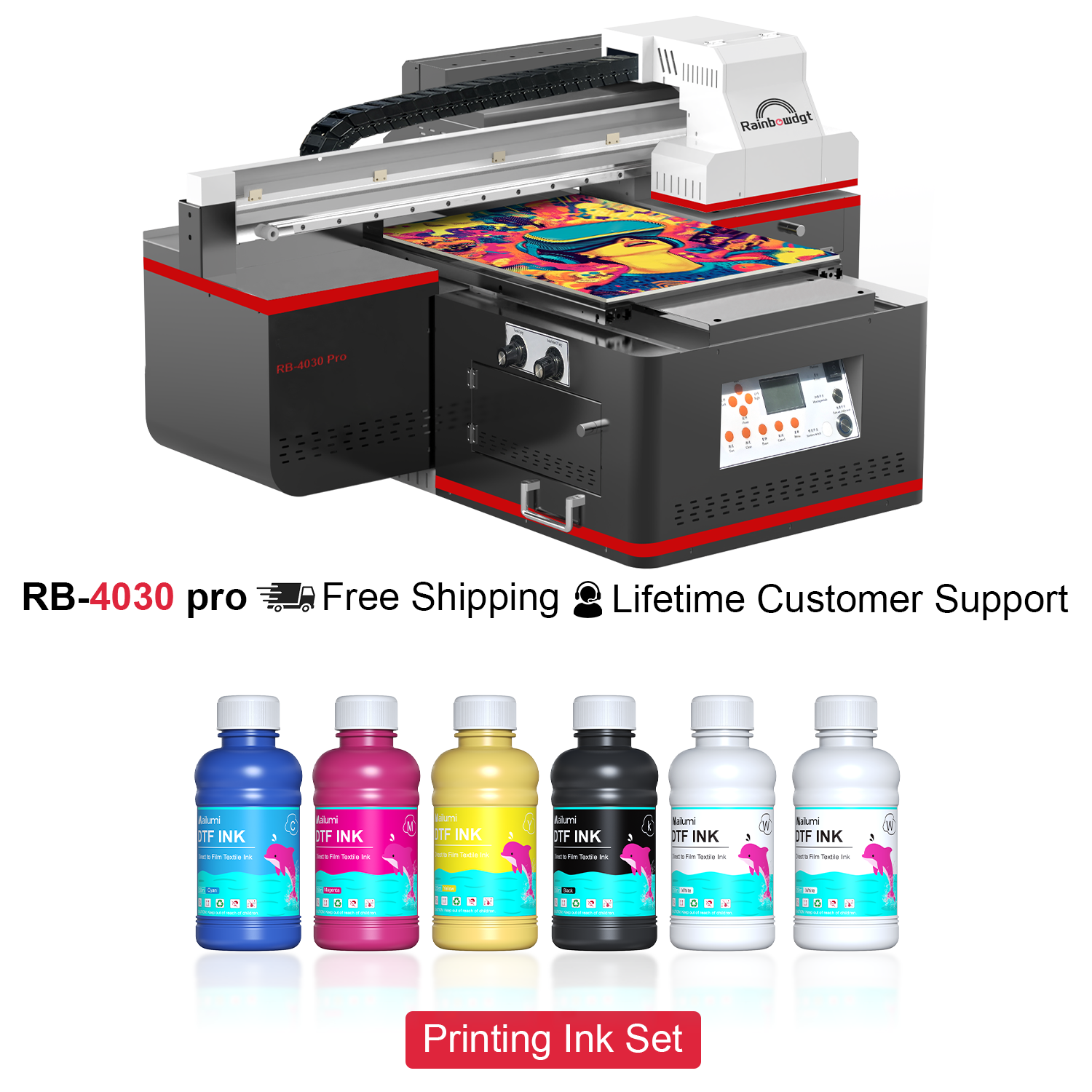

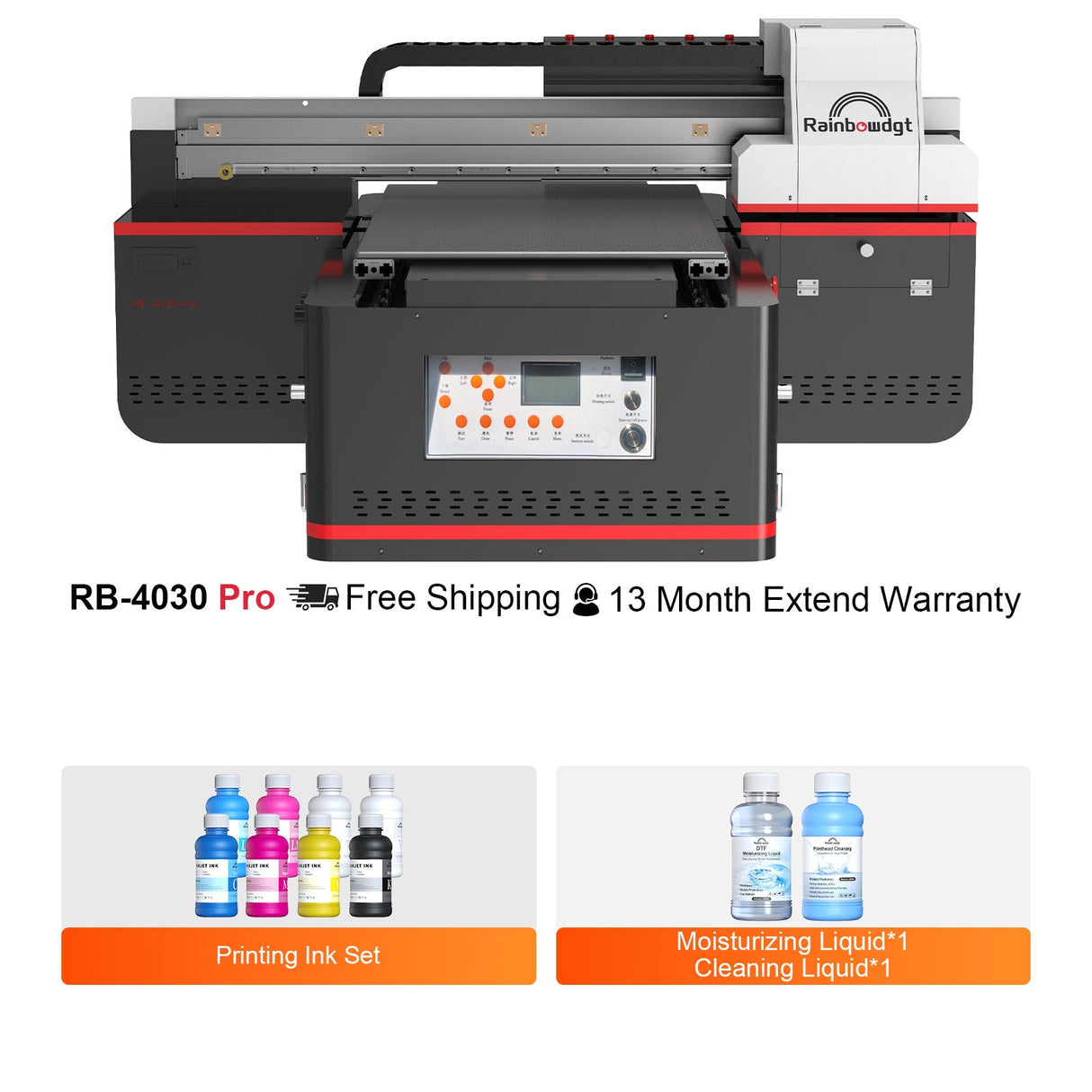

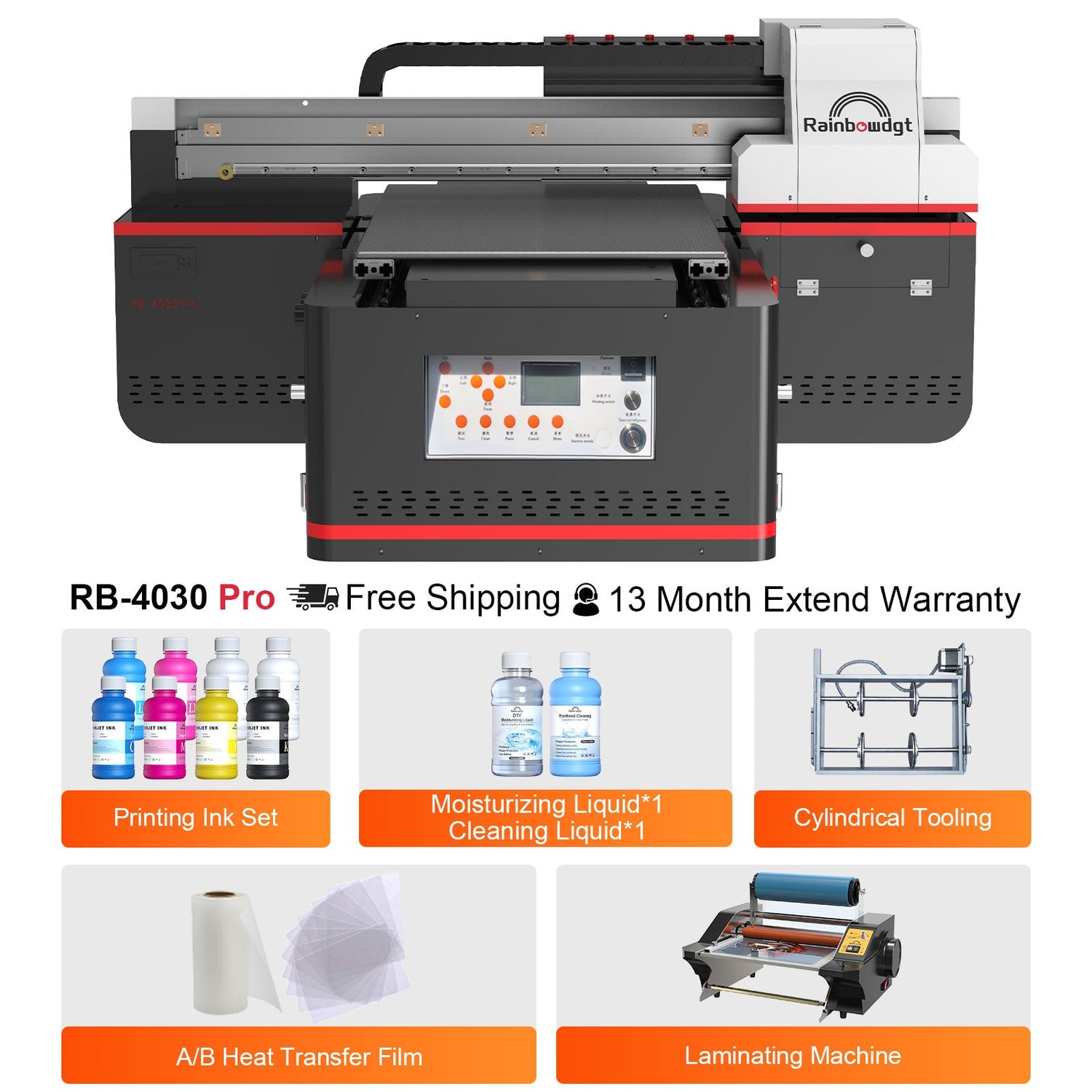

What’s In The Box

RB-4030pro UV printer
2 sets of 7-color 500ml ink (including 2 bottles of moisturizing liquid 1L, 2 bottles of cleaning liquid 1L, 1 bottle of cleaning liquid 1L)
1 ink damper
1 syringe
USB interface and power cord
1 software
1 USB user manual
USB interface and power cord and other accessories
13-month warranty
Online technical support
Exclusive after-sales team and service manager
Full set of manuals, software and teaching videos

Features

Features
HiWin Linear Guideways: Experience superior stability, increased precision, and a longer lifespan for your applications.

Printhead Auto-Cleaning Function: With a single button, cleaning is effortless. Enjoy a user-friendly experience that makes it easy for beginners to operate the machine comfortably.

Printhead Heating: Maintain the printhead at an optimal temperature during winter to prevent clogging and ensure smooth operation.

RIIN Software: Honson's International RlP software featuring automatic cleaning, printhead testing.and an intuitive interface.

View full details

Future of Printing

The fusion of innovative technology and user-friendly design positions it as an ideal choice for both experienced professionals and newcomers. It delivers dependable, high-quality outcomes that you can rely on for years. Explore the future of printing with a machine engineered for outstanding performance and ease of use.

Profitable Printing Solutions

With two models to choose from, we have the perfect printer for every scale of operation. Choose the right model for your needs and start creating stunning custom designs today!

RB-4060

主图7.jpg__PID:11c00da7-ebc1-4412-ab57-b2f400a35617

RB-4030

主图1.jpg__PID:a50287fa-3f93-40d6-9eab-df3149a51a3c
RB UV PrinterRB-4060  RB-4030
Print size40*60cm 40*30cm
Print head & quantityEpson DX8*2 pcs Epson DX8*2 pcs
PlatformGlassGlass
LcLm & Varnish support
Color-White-Varnish in one pass
Cap station structureMechanical printhead lock sliding levelMechanical printhead lock sliding level
Max print height15cm15cm
Print mug & bottle
Print speed24min 12min
Ink heating
Coolingwater cooling systemwater cooling system
Launch time20192019

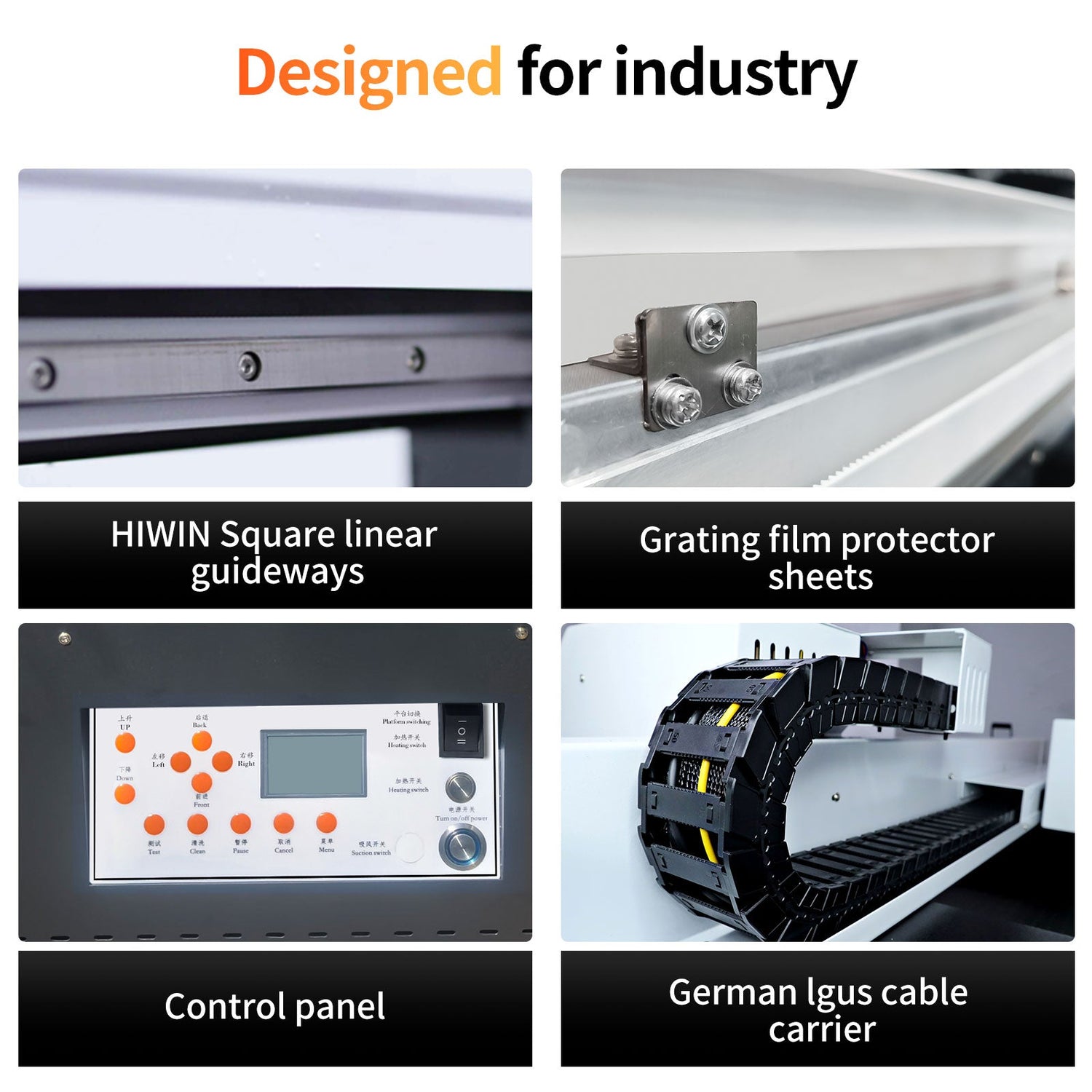

Square linear guideways

Features HIWIN linear guideway, just like the train running in the rails, the linear guideway can help the carriage moving more smoothly while printing.

Magnetic windows for inspection

Features 4 openable windows, easier to do the machine maintenance.

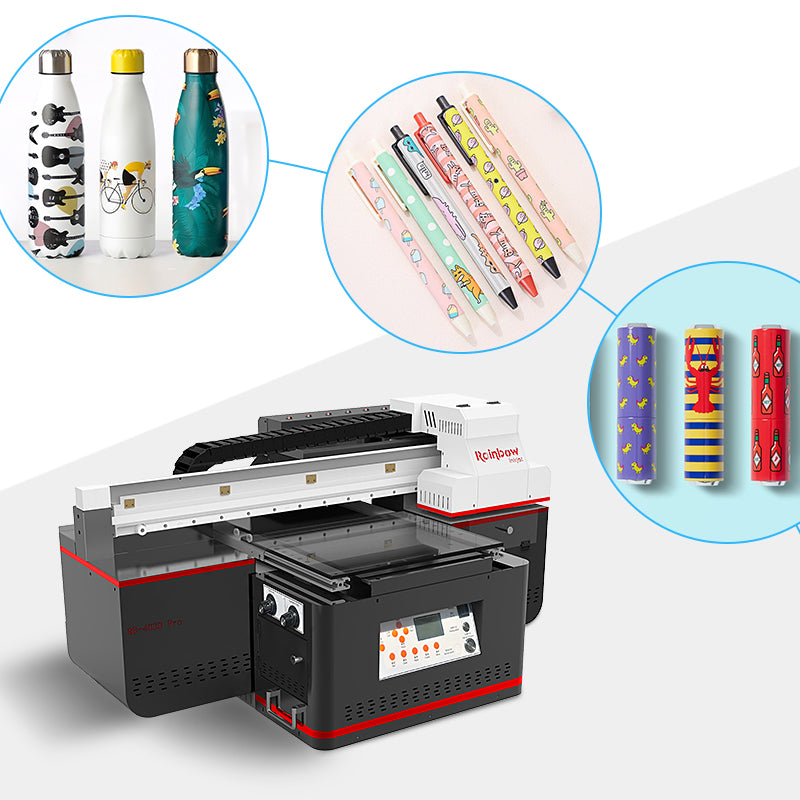

Rotary/flatbed switch + printhead heating

Features an integrated control panel. Users can convert from flatbed mode to rotary mode. The printhead heating function is also supported, ensuring that the ink's temperature does not get so low as to clog the head.

Grating film protector sheets

Features a U-shaped metal sheet on the carriage, designed to prevent ink spray from contaminating the encoder film and compromising precision.

German Igus cable carrier

Imported from German, the cable carrier runs smoothly and quietly, it protects the ink tubes and cables during the printer carriage movement, and it has long lifespan.

Parameters

NameRB-4030 UV PrintheadSingle DX10/2pcs Epson DX10/I1600/3200
PrintheadSingle DX10/2pcs Epson DX10/I1600/3200 ConfigurationSingle HIWIN Guideway
Print Accuracy720dpi-2880dpi Print Width40*30cm
Applicable SystemWindows XP/Win7/Win8/Win10 Print SpeedAround 178s/A3 size
Color ConfigurationCMYKLcLm+WV Ink Consumption9-12ml/sqm
SoftwareRIIN Weight 101KG
