Packages

Features

One Pass Printer for Carton

HK$476,089.00

Sale Sold out

Auto Height Measurement
Auto Cleaning
White Ink Stir Device

Overview

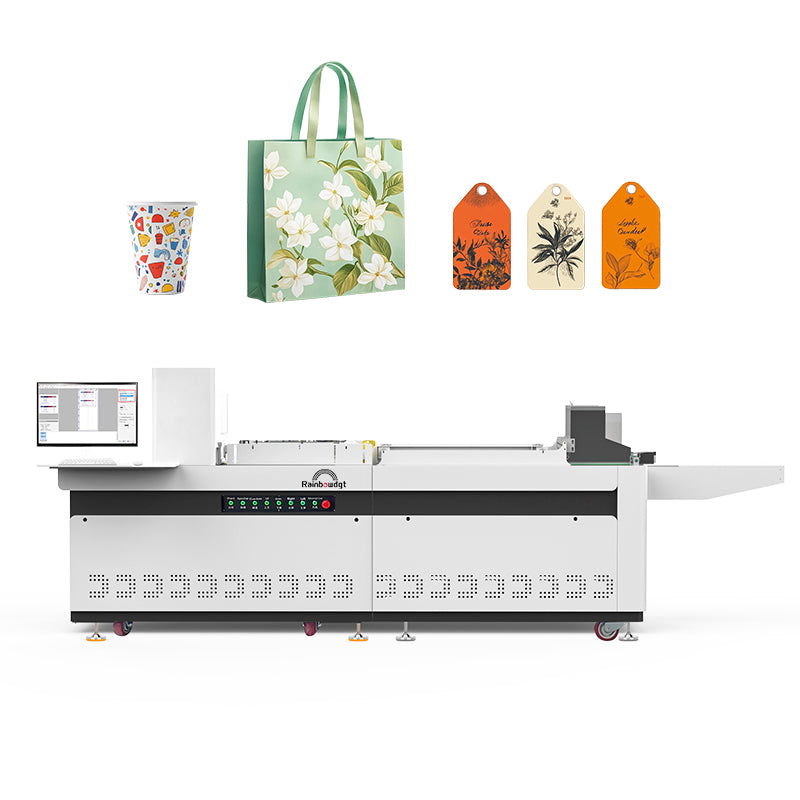

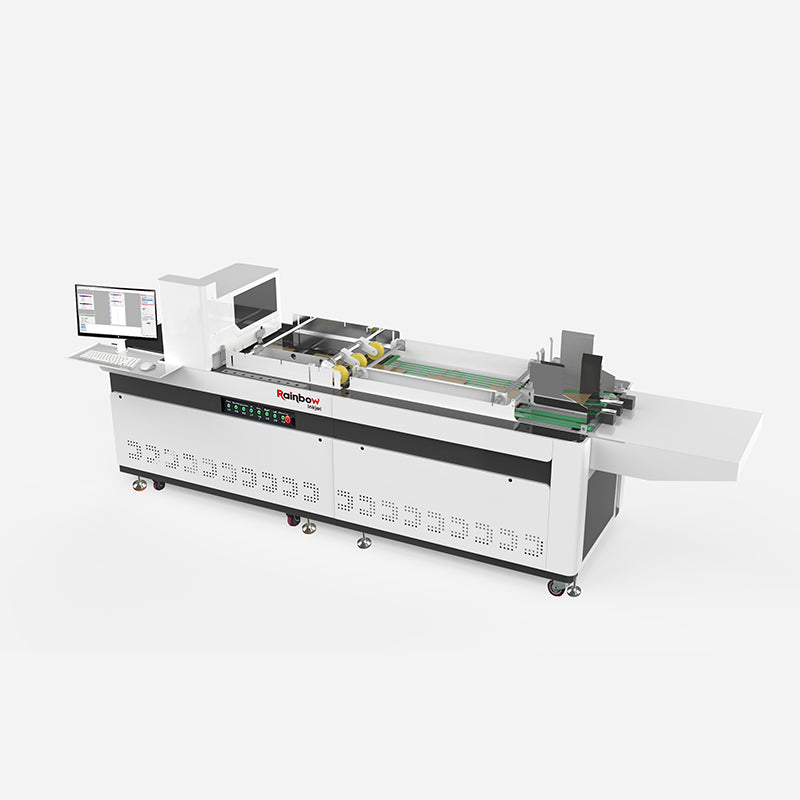

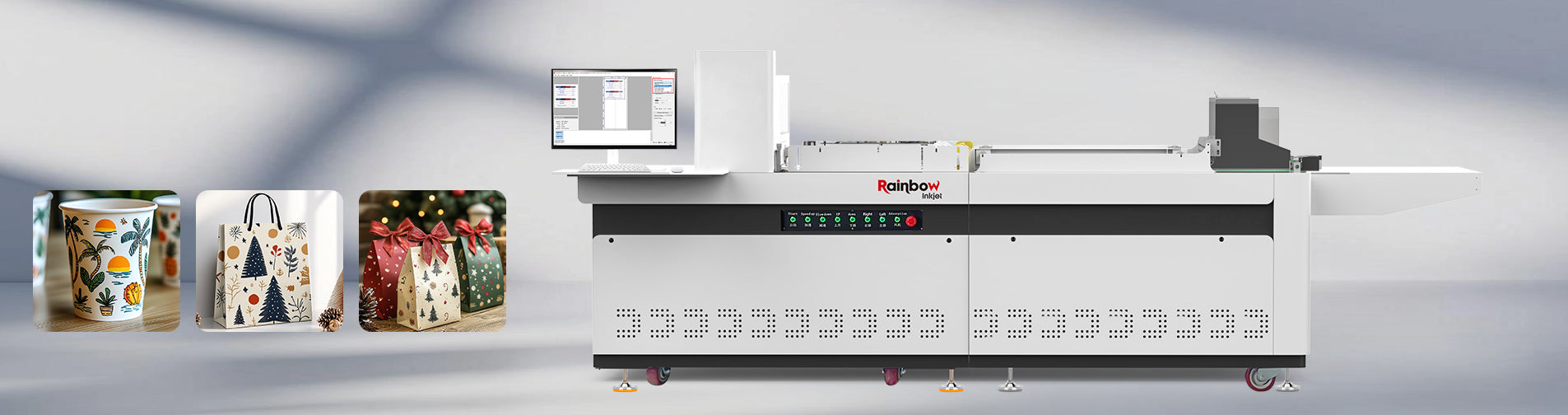

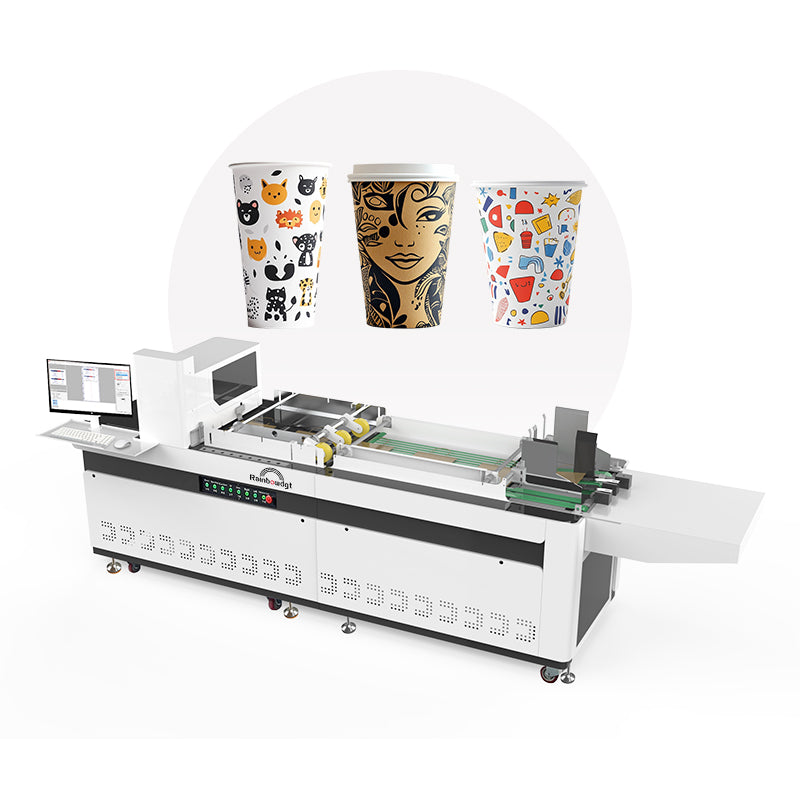

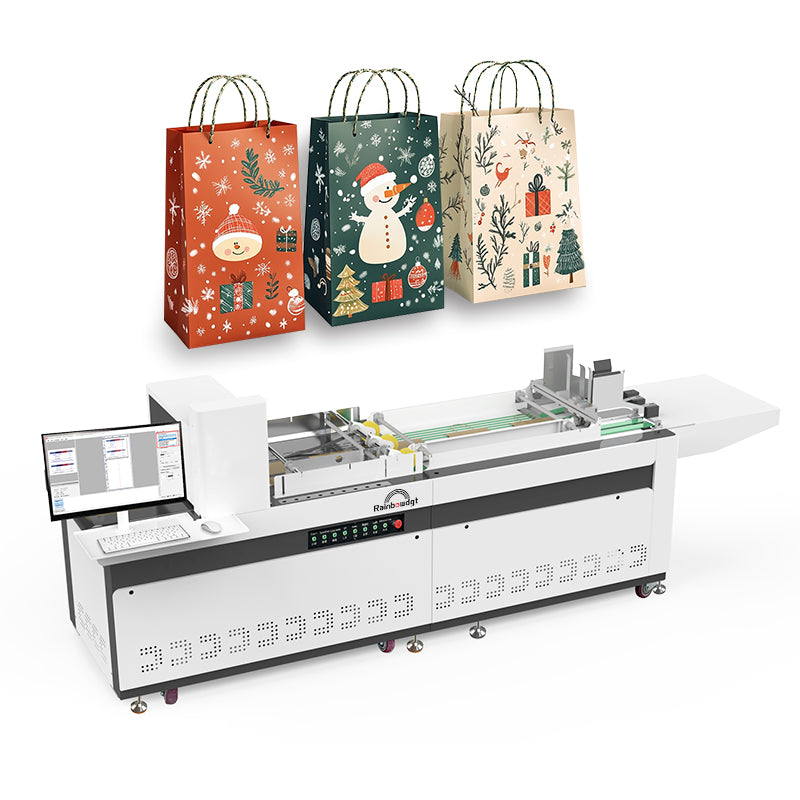

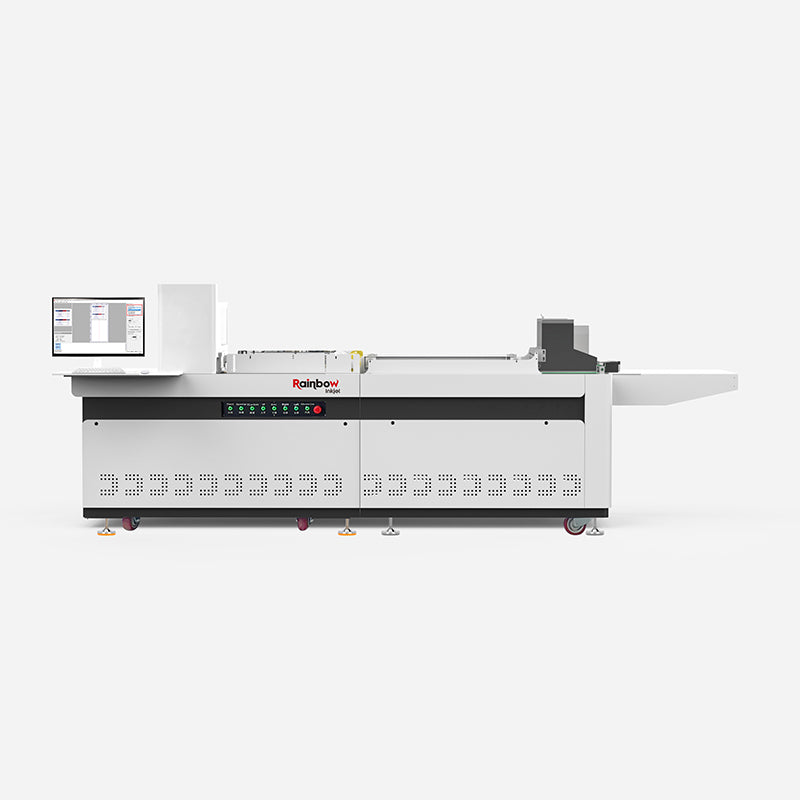

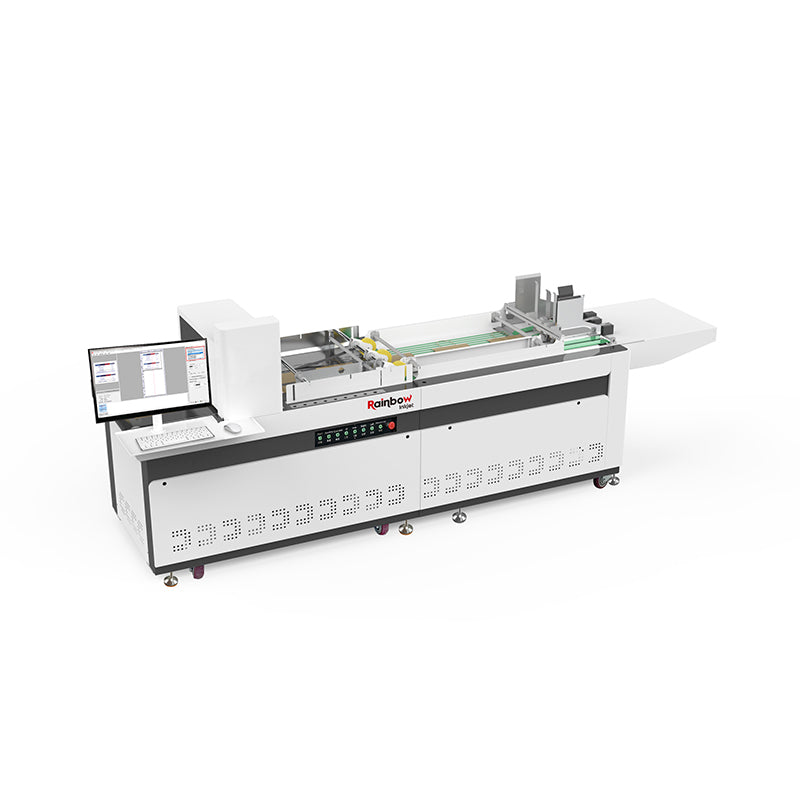

The ONE PASS digital printing machine is a precision digital printer with the ability to print on a wide range of products, including airplane boxes, cardboard boxes, corrugated paper, and bags. The machine is controlled by a PLC system and uses industrial printheads with an intelligent constant pressure system. It achieves high resolution with 5PL ink droplet size and employs infrared height measurement. The equipment also incorporates a paper feeder and collector combination. Furthermore, it can automatically adjust the product height and print width to meet the specific requirements of individual customers.

What’s In The Box

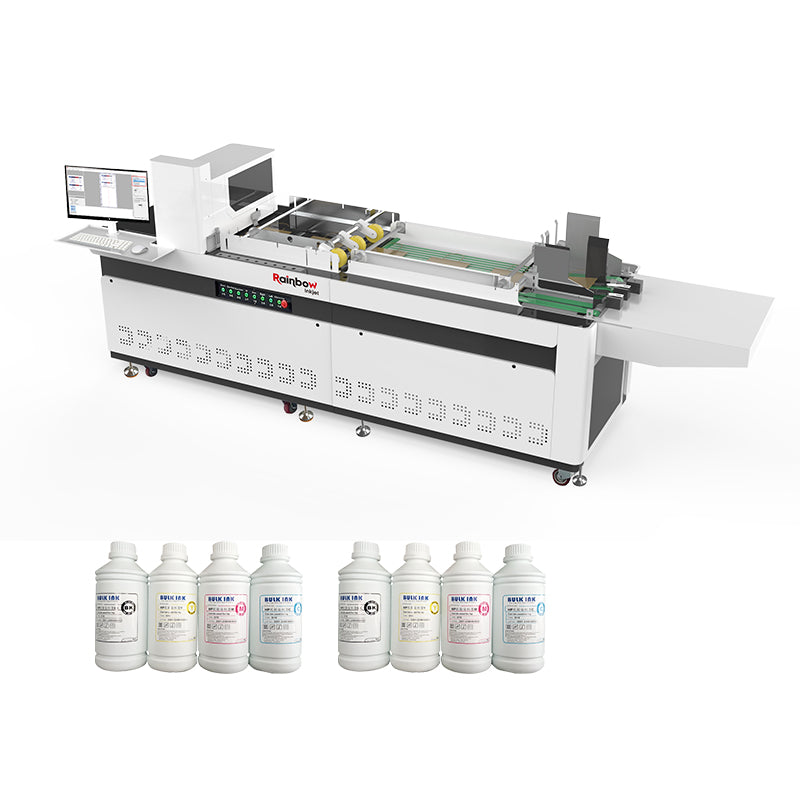

One Pass Printer for Carton
2 sets of 1L ink for 4 colors
USB port and power cord
1 software
1 USB user manual
USB port and power cord and other accessories
13-month warranty
Online technical support
Exclusive after-sales team and service manager
Full set of manuals, software and teaching videos

Features

Positioning Resistor
Make the product more attached to theprinter. Better completion of printing

Crawler Conveyor
Crawler conveying method supportbidirectional conveying of materials

Adsorption Platform
More than 1,000 air intakesit has anadsorption effect on the material

Automatic PositionCorrection
Automatically corect the materialposition, making the printed materialcloser to the print head side

Printhead 4 heads 5 heads 6 heads

View full details

Future of Printing

The Carton One Pass Printer combines cutting-edge inkjet technology with industrial-grade precision, delivering flawless, high-speed prints in a single pass. Whether you're a packaging manufacturer, printing specialist, or large-scale producer, its seamless automation and consistent quality ensure unmatched productivity.Compact yet powerful, it produces sharp, smudge-proof prints on corrugated, folding cartons, and more—without sacrificing speed or durability. From vibrant retail packaging to durable shipping boxes, step into the future of digital carton printing with a machine designed for performance, reliability, and effortless operation.

11.jpg__PID:bf6b3c2b-292c-4dc2-877b-e3107155206f

Positioning Resistor

Make the product more attached to theprinter. Better completion of printing

Crawler Conveyor

Crawler conveying method supportbidirectional conveying of materials

22.jpg__PID:6b3c2b29-2c2d-4207-bbe3-107155206f10

33.jpg__PID:3c2b292c-2dc2-477b-a310-7155206f1038

Adsorption Platform

More than 1,000 air intakeslt has anadsorption effect on the material

Automatic Ink Pump

Equipped with ink shortage alar,itcan automatically supply ink

44.jpg__PID:2b292c2d-c207-4be3-9071-55206f1038e7

55.jpg__PID:292c2dc2-077b-4310-b155-206f1038e7fc

Supports Customization

All-in-one computer withself-developed operating software,supports personalized customization.

Automatic Position Correction

Automatically corect the materialposition, making the printed materialcloser to the print head side

66.jpg__PID:2c2dc207-7be3-4071-9520-6f1038e7fcda

Parameters

Name	Carton one pass
Printhead	HP Printhead	Configuration	/
Print Accuracy	1200300/1200600/1200*1200dpi	Print Width	21cm/42cm/60cm/90cm
Applicable System	Win7/Win8/Win10	Print Speed	20-30m/(min)
Color Configuration	CMYK	Ink Consumption	9-12ml/sqm
Software	Rainbowdgt	Net Weight	250KG
