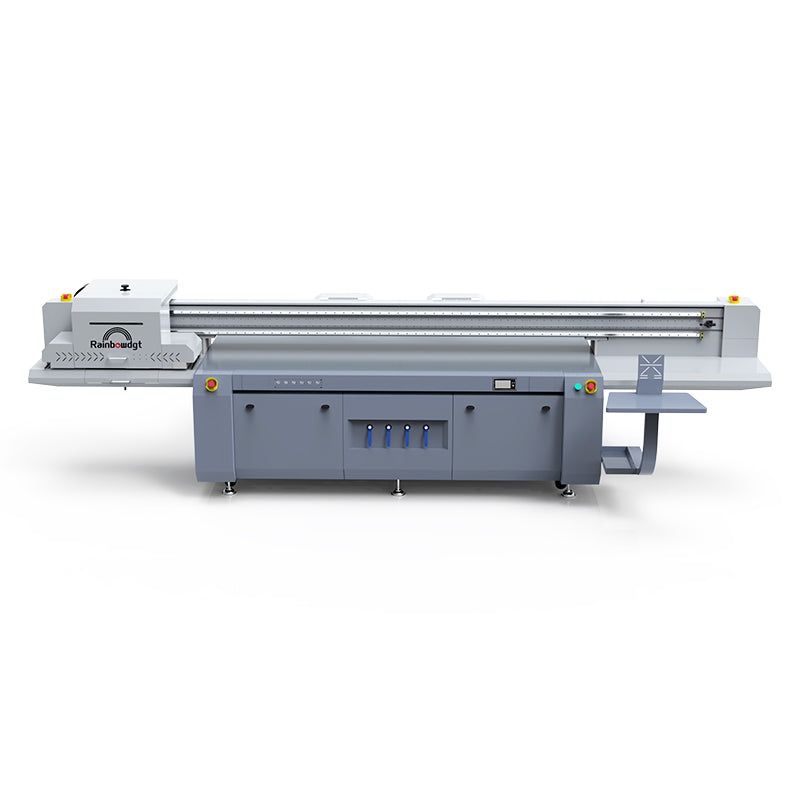

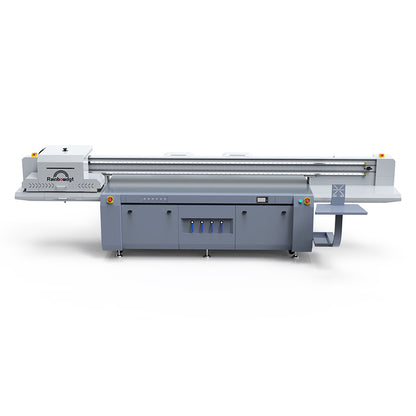

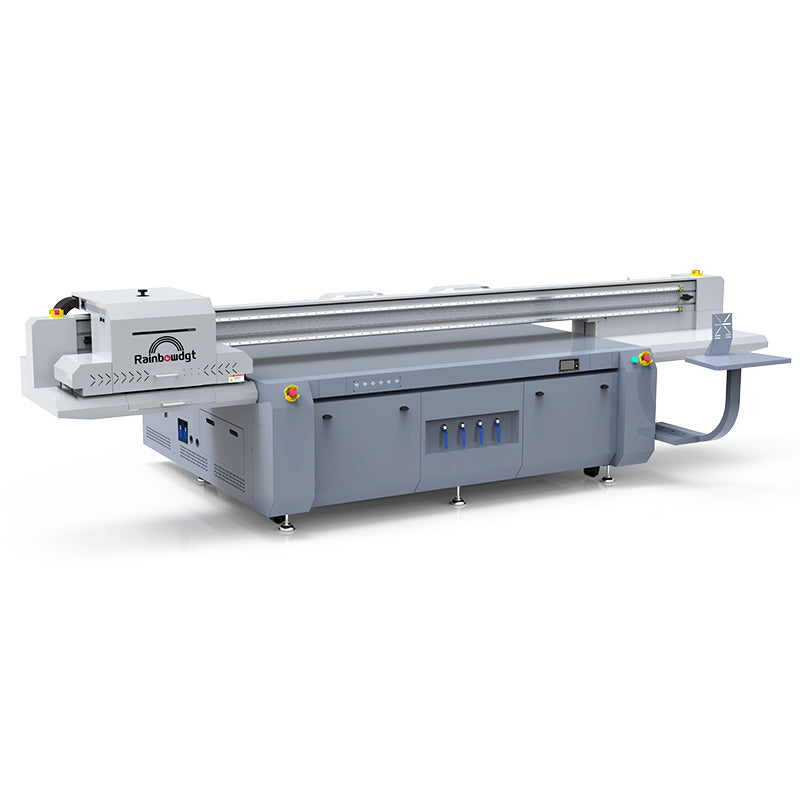

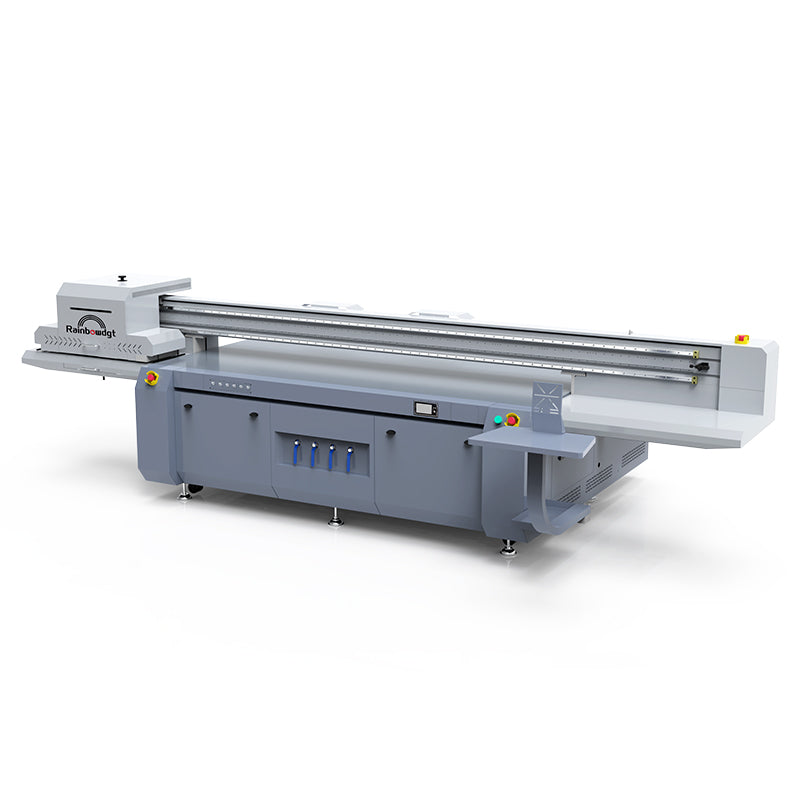

Nano-2513 UV Flatbed Printer

Offering industrial-grade performance, its 50mm hard anodized aluminum vacuum table with X/Y scale, Taiwan TECO Electric, and 4-zone 1500W blower system, supporting 50kg/m² substrate, with dual negative pressure ink supply, ink shortage alarm, emergency switch, temperature control, Japanese THK linear guide, precision ball screw, optional magnetic levitation frictionless motion, and standard computer platform, providing unmatched printing accuracy, safety, and versatility for all materials.

PrinterNano-2513 UV Flatbed Printer
13 Months Warranty
Online Tech Support
Dedicated After-Sale Group and Serving Mangaer
Full set manuels,software and teaching videos

High-Quality Structure
Integrated frame and beam are quenched to relieve stress so that deformation is avoided during use and transportation.

The welded full-steel frame is processed with a five-axis gantry milling machine to ensure the assembly accuracy

German Igus Cable Carrier
IGUS cable carrier(Germany) and Megadyne synchronous belt(Italy) are installed to ensure long-term stability and reliability.

Vacuum Suction Table
A 50mm thick suction table made of hard-anodized aluminum with marked scales on both the X and Y axes brings ease of use while minimizing the possibility of deformation.

Japan THK Linear Guideways
To improve position repeat accuracy and reduce noise , precision ball screw with double grinding technology is adopted in Y axis, and dual THK soundless linear guideways is adopted in X-axis.
