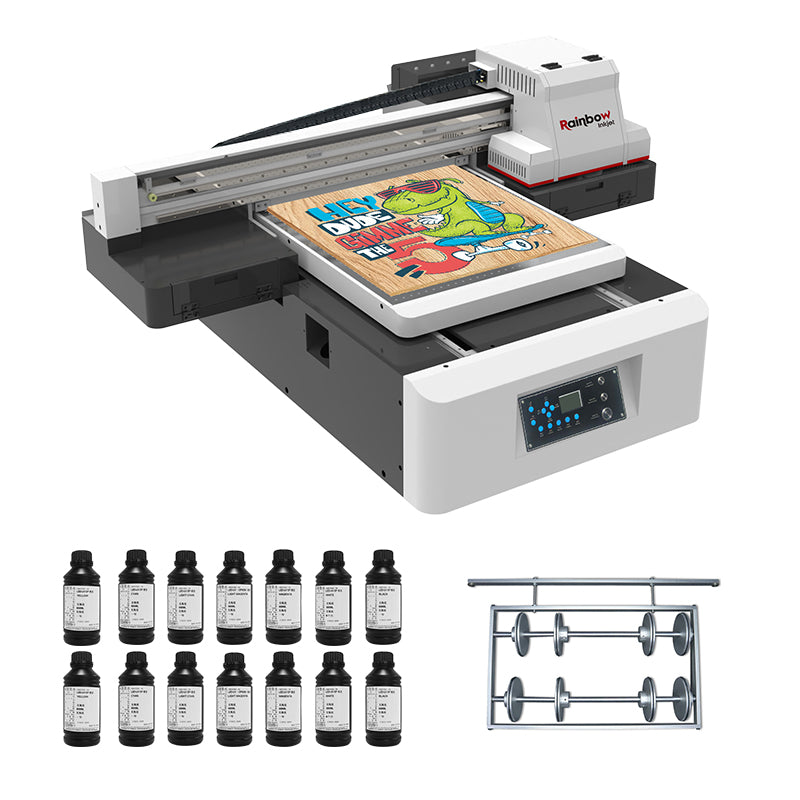

Nano 9 + Cylindrical Tooling
Nano 9 + Cylindrical Tooling
Nano 9 + Cylindrical Tooling
Nano 9Couldn't load pickup availability
Future of Printing
Next-Generation Printing, Made Simple
Built with advanced technology and user-friendly design, this printer delivers reliable, high-quality results for both professionals and beginners — combining powerful performance with effortless operation.
Profitable Printing Solutions
With two models to choose from, we have the perfect printer for every scale of operation. Choose the right model for your needs and start creating stunning custom designs today!
Nano 9
Nano 7
| RB UV Printer | Nano 9 | Nano 7 |
|---|---|---|
| Print size | 60*90cm | 50*70cm |
| Print head & quantity | Epson DX8*3 pcs | Epson DX8*3 pcs |
| Platform | Aluminum vacuumn | Aluminum vacuumn |
| LcLm & Varnish support | ✓ | ✓ |
| Color-White-Varnish in one pass | ✓ | ✓ |
| Mechanical printhead lock sliding level | Mechanical printhead lock sliding level | |
| Max print height | 15cm | 24cm |
| Print mug & bottle | ✓ | ✓ |
| Print speed | 30min | 30min |
| Ink heating | ✓ | ✓ |
| Cooling | water cooling system | water cooling system |
| Launch time | 2022 | 2022 |
Double HiWin liner guideways
Double HIWIN guideways bring better stability in printer running, thus better printing accuracy, and longer machine lifespan.
Gear Drive lifting in Z-axis
The z-axis lifting mechanism has been upgraded from a belt system to a gear drive.Resulting in higher printing accuracy and enhanced stability
Printhead lock sliding lever
This device is a mechanical structure for locking the printheads and sealing them tightly from drying and clogging.
Magnetic grating film
Magnetic grating strips feature support points that prevent wobbling. Ensuring a more precise printing effect.
All-aluminum vacuum platform and protector
The Nano9 features a robust aluminum vacuum suction table coated with PTFE (Teflon).Equipped with powerful air fans, making it ideal for printing UV DTF film and other flexible materials.
Parameters
| Name | Nano 9 | ||
|---|---|---|---|
| Printhead | 3pcs Epson DX8 | Configuration | Double HIWIN Guideways |
| Print Accuracy | 720dpi-2880dpi | Print Width | 60*90cm |
| Applicable System | Windows xP/Win7/Win8/Win10 | Print Speed | Around 178s/A3 size |
| Color Configuration | CMYKLcLm+WV | Ink Consumption | 9-12ml/sqm |
| Software | Photoprint/Ultraprint/RIIN | Net Weight/Gross Weight | 135KG/180KG |
Printing Step
