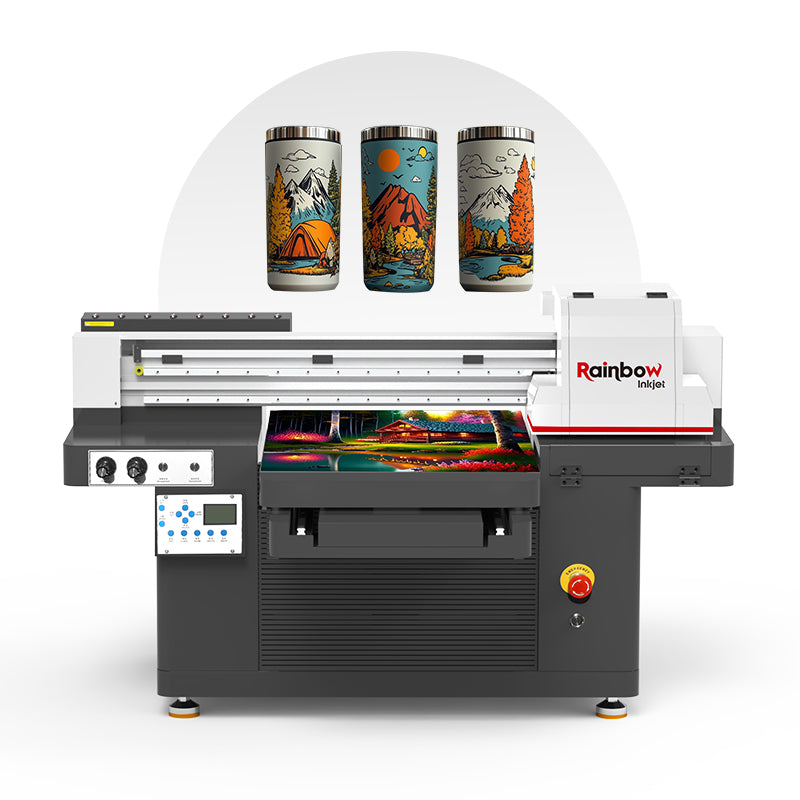

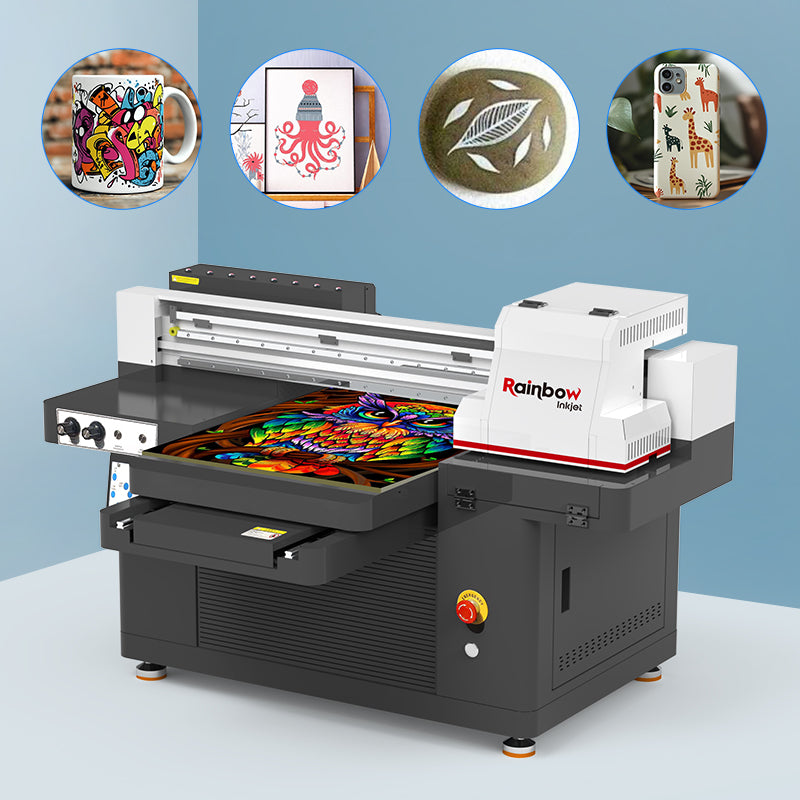

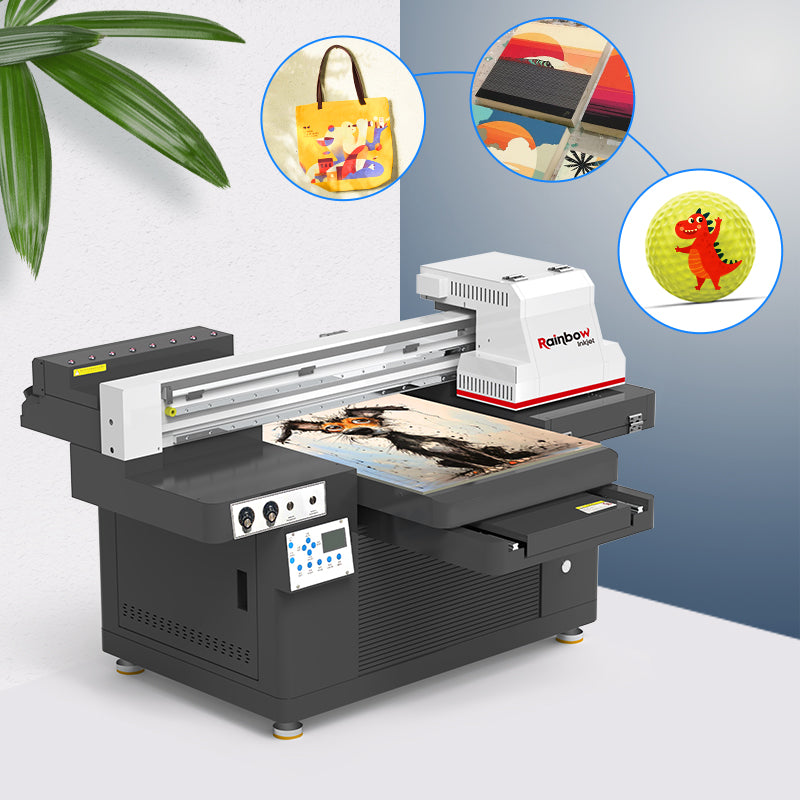

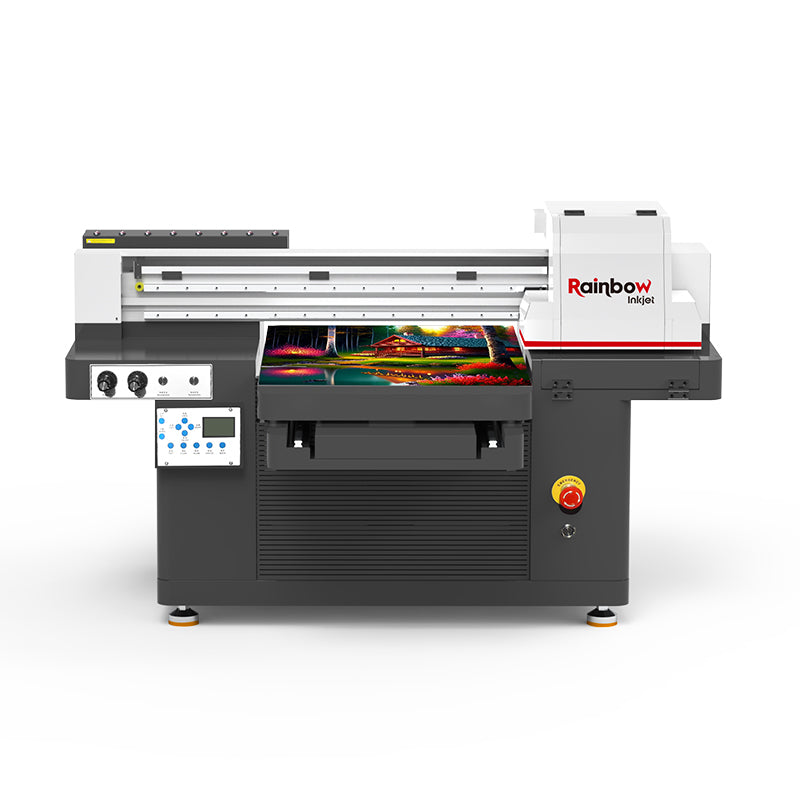

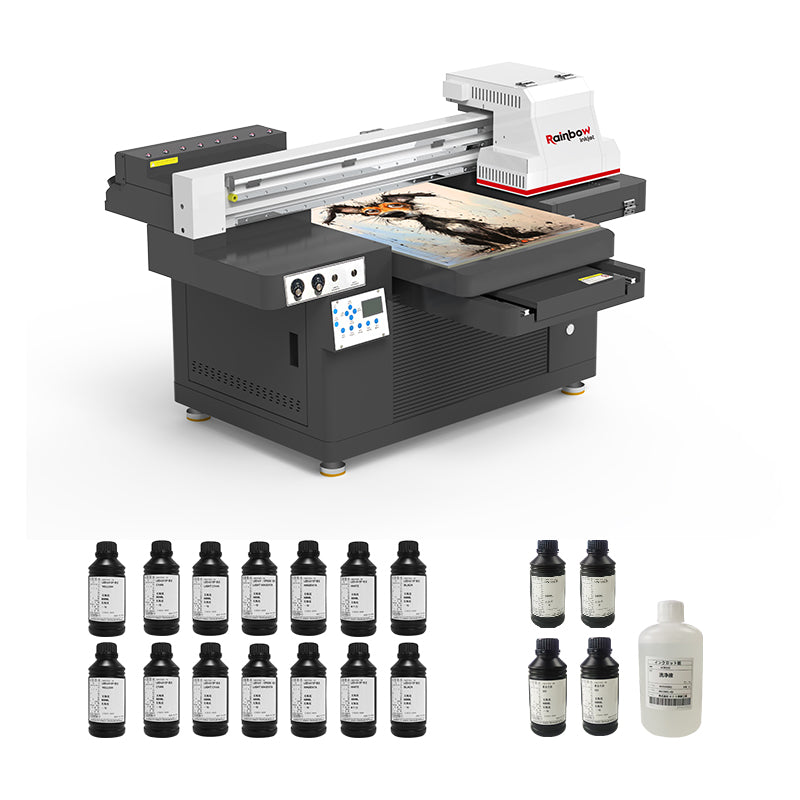

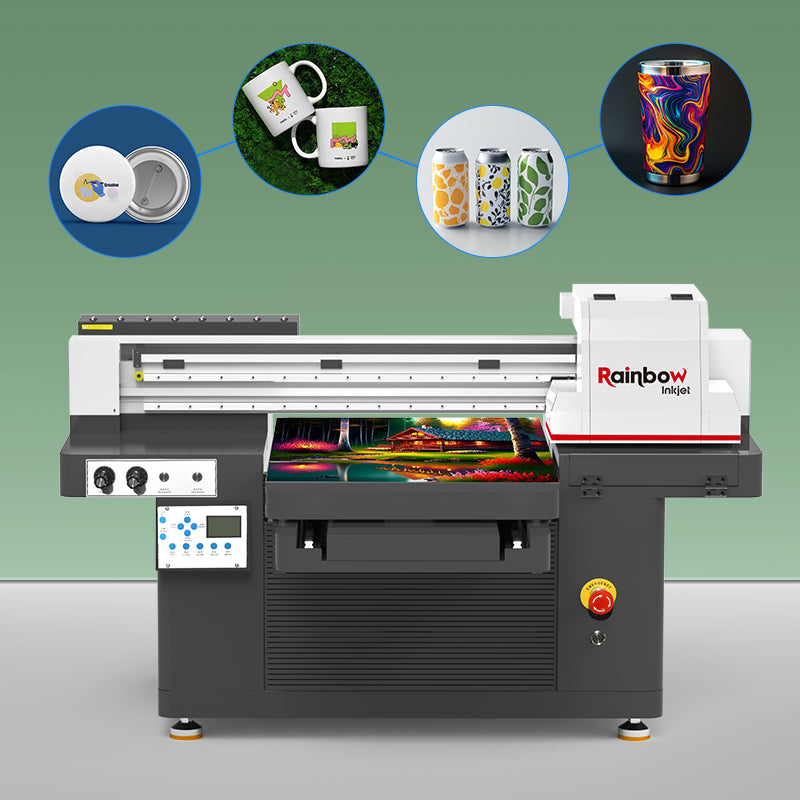

Nano 7 A2+UV Flatbed Printer
Introducing the Nano 7: A2 UV Printer, Bigger and More Versatile. Boasting an impressive 50×70 cm print size, this printer is designed for a wide range of applications. Its vacuum table secures materials in place, ensuring precision in every job. Equipped with a CMYKLcLmWV ink system, the Nano 7 delivers vibrant and detailed prints on various surfaces. Whether it’s phone cases, pens, cards, wood, golf balls, metal, glass, acrylic, PVC, canvas, ceramic, mugs, bottles, cylinders, or leather, this printer can handle it all with ease.
1. Double Hiwin linear guideways
Nano 7 has 2pcs of Hiwin linear guideways on its X-axis and 2pcs on the Y-axis. (Most other A2 UV printers have only 1pcs of guideway on the X-axis).
This brings better stability in printer running, thus better printing accuracy, and longer machine lifespan.
2. 4pcs of thick ball screws
Nano 7 A2 UV printer has 4pcs on the Z-axis, making the movement of the platform smooth and fast, giving the printer a stunning 24cm(9.4in) print height.
The 4pcs of ball screw also makes sure that the platform is stable and level, which helps secure the printing resolution.
3. Thick aluminum suction table
The full aluminum suction platform has equipped with strong air fans, the surface is specially treated to be anti-corrosion and anti-scratch.
The suction table plug is at the back of the printer, you can also find the on/off switch in the front panel.
4. German Igus cable carrier
Imported from German, the cable carrier runs smoothly and quietly, it protects the ink tubes and cables during the printer carriage movement, and it has long lifespan.
5. Printhead lock sliding lever
The newly invented device is a mechanical structure for locking the printheads and sealing them tightly from drying and clogging.
When the carriage returns to the cap station, it hits the lever which pulls up the printhead caps. By the time the carriage brings the lever to the right limit, the printheads will also be fully sealed by the caps.
6. Low Ink alarm system
8 lights for 8 kinds of ink make sure you will notice the ink shortage when it does, the ink level sensor is placed inside the bottle so it can detect accurately.
7. 6 colors+White+Varnish
CMYKLcLm+W+V ink system now has Lc and Lm 2 extra colors to improve the color accuracy, making the printed result even sharper.
8. UV LED lamp power knobs
There are two UV LED lamps in Nano 7 for color+white and varnish respectively. Thus we designed two UV lamp wattage controlers. With them, you can adjust the wattage of the lamps according to your jobs’ requirement.
For example, if you need to print heat-sensitive materials like film A&B(for stickers), you might want to turn down the lamp wattage to prevent it from altering its shape because of the heat.
Specification
| Name | Nano 7 |
| Printhead | Three Epson DX8/XP600 |
| Resolution | 720dpi-2880dpi |
| Ink Type | UV LED Curable Ink |
| Package size | 500ml per bottle |
| Ink supply system | CISS Built Inside Within Ink Bottle |
| Ink Consumption | 9-15ml/sqm |
| Ink stirring system | Available |
| Maximum printable area (W*D*H) | Horizontal 50*70cm (19.7*27.6 inches) Vertical Substrate 24cm (9.4 inches) / Rotary 12cm (4.7 inches) |
| Media Type | Metal, Plastic, Glass, Wood, Acrylic, Ceramics, PVC, Paper, TPU, Leather, Canvas, etc. |
| Platform Weight Limit | ≤10kg |
| Media (object) holding method | Vacuum suction table |
| RIP Software | UltraPrint |
| Control Software | BetterPrinter |
| File Format | TIFF(RGB&CMYK)/BMP/PDF/EPS/JPEG… |
| System | Windows XP/Win7/Win8/win10 |
| Interface | USB 2.0 |
| Language | Chinese/English |
| Power Requirement | 50/60HZ 220V(±10%) ＜5A |
| Power Consumption | 500W |
| Machine size | 100*127*80cm |
| Packing size | 114×140×96cm |
| Net Weight/ Gross Weight | 110KG/150KG |
