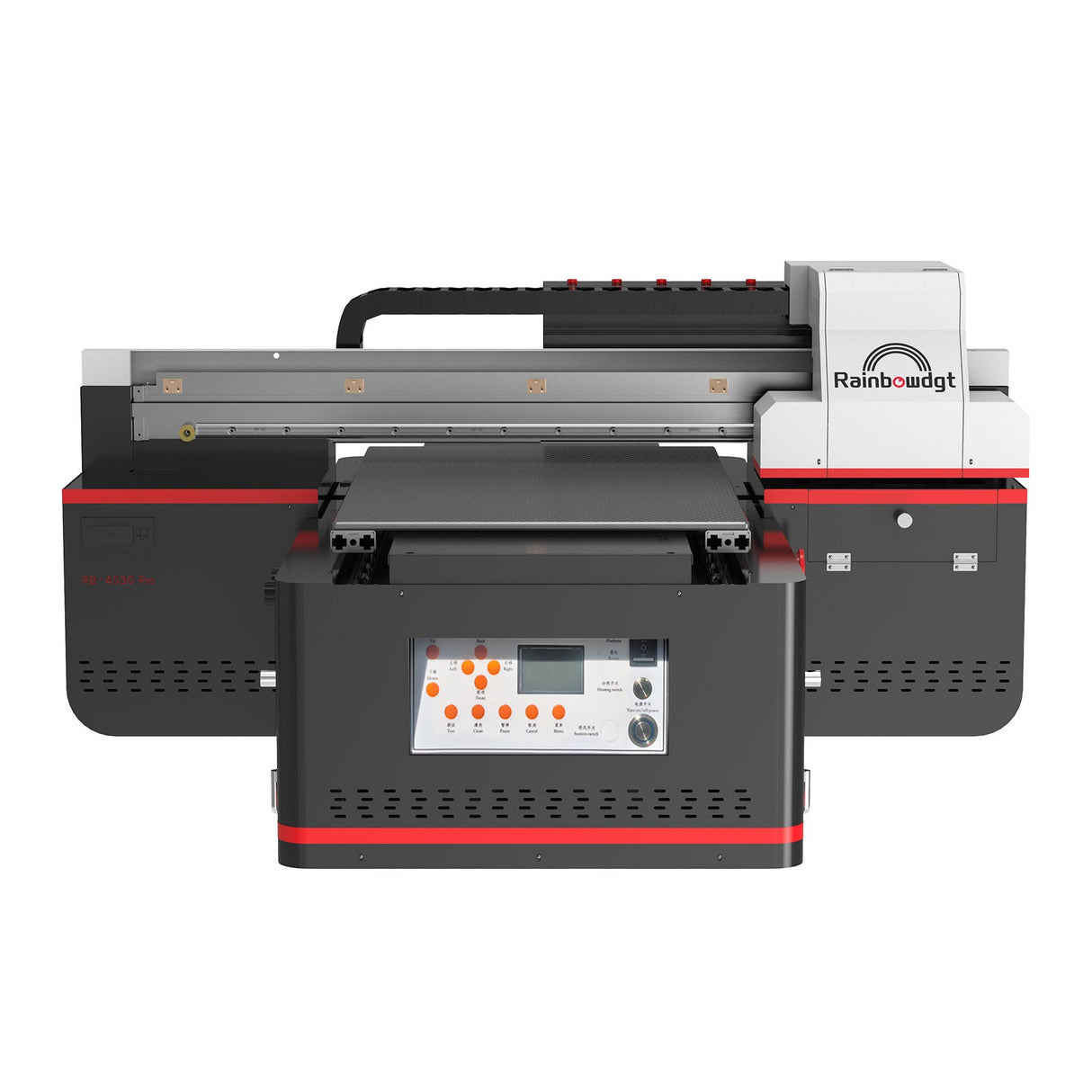

Rainbow Flagship A3 UV Flatbed Printer Machine

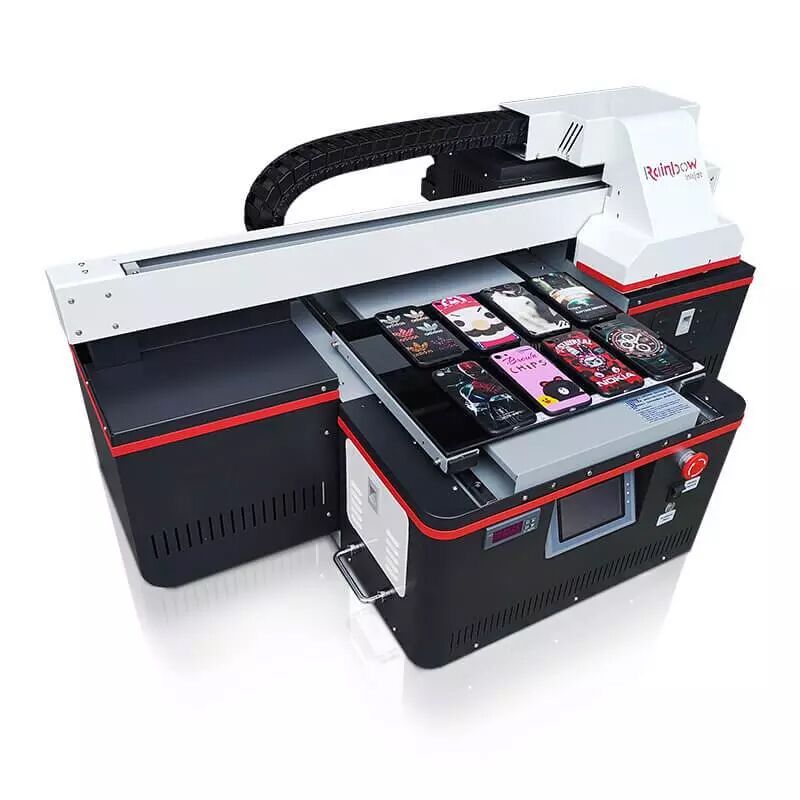

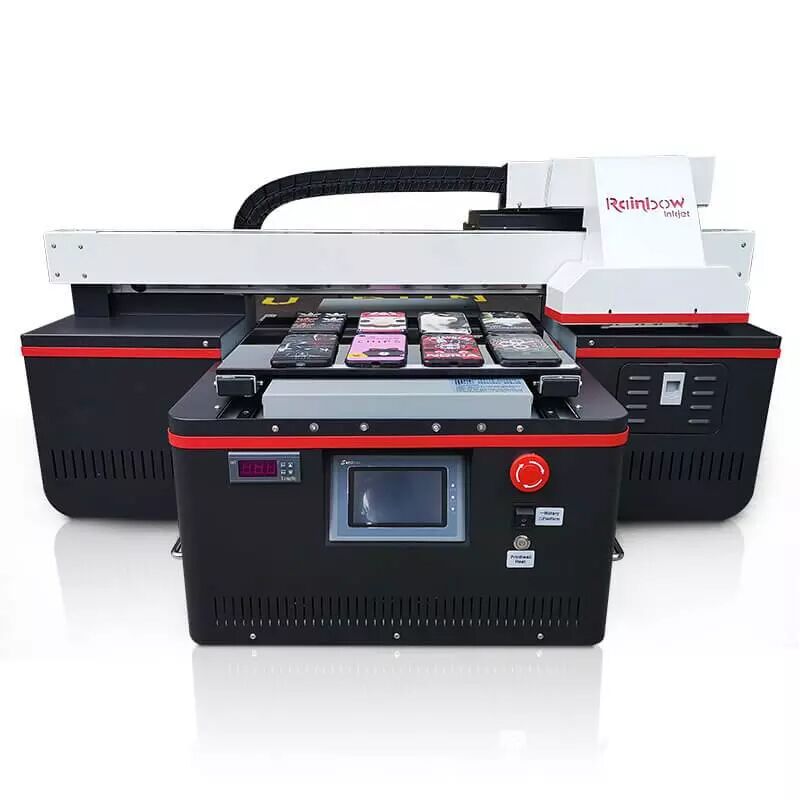

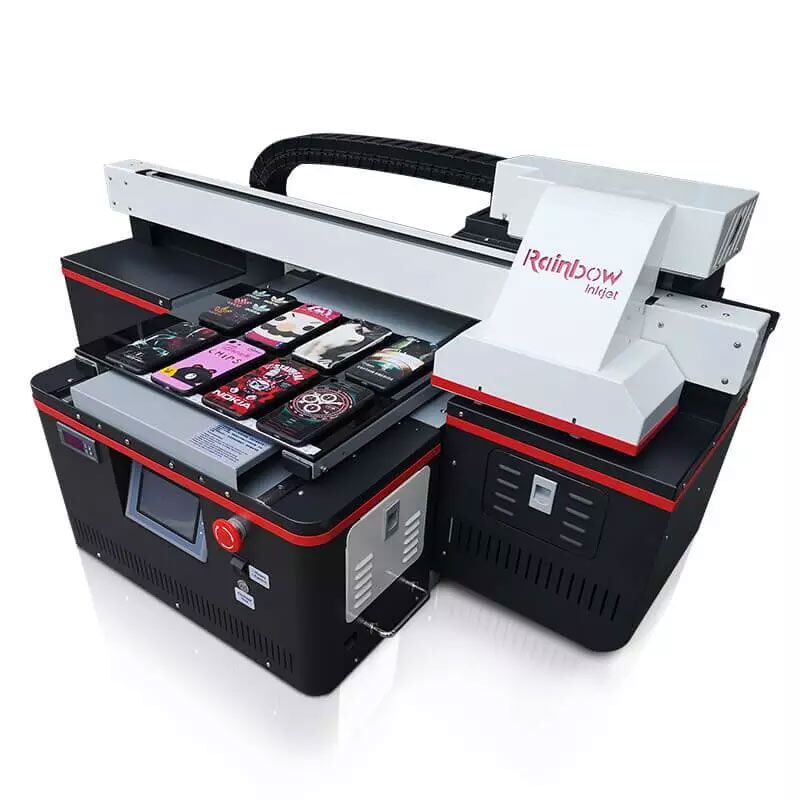

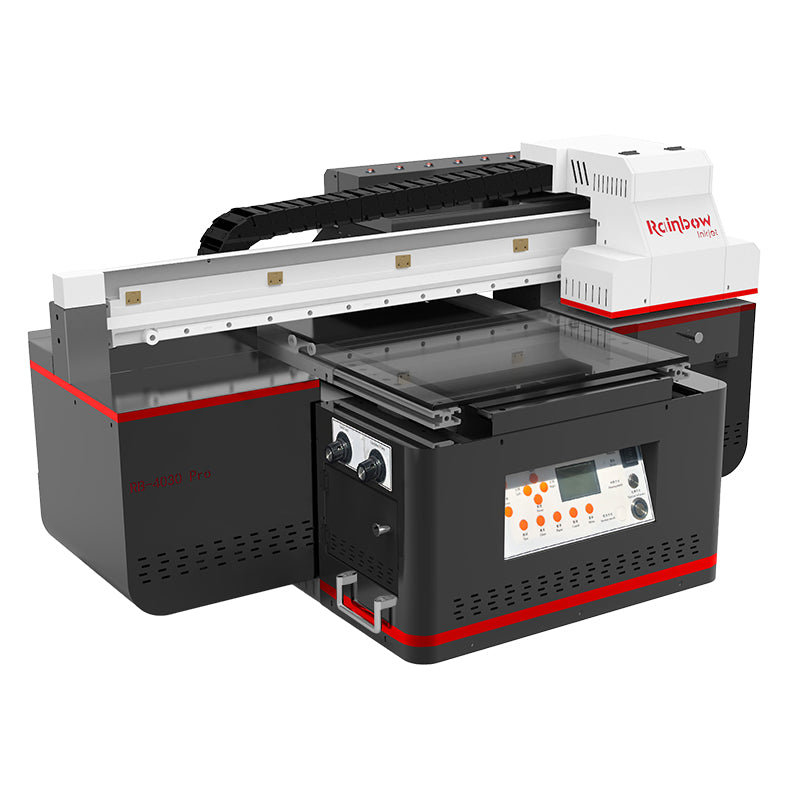

RB-4030 Pro A3 UV Flatbed Printer Machine
Meet the RB-4030 Pro A3 UV Printer, your versatile solution for detailed printing on flat surfaces and cylindrical objects like bottles and mugs. With a practical 40×30 cm print area, it caters to a variety of project sizes. The printer is adaptable, featuring either one or two Epson TX800 printheads for consistently crisp and colorful results.
Its advanced six-color ink system brings out the depth and vibrancy in every print, on materials ranging from acrylic and metal to glass. Accommodating up to 15cm in material thickness and equipped for both flatbed and rotary printing, the RB-4030 Pro combines functionality with ease of use, ensuring smooth operation and simple maintenance for all your printing needs.
| Model Name | RB-4030 Pro |
| Print size | 40*30cm(15.7*11.8inches;A3) |
| Printh height | 15cm(6inches) |

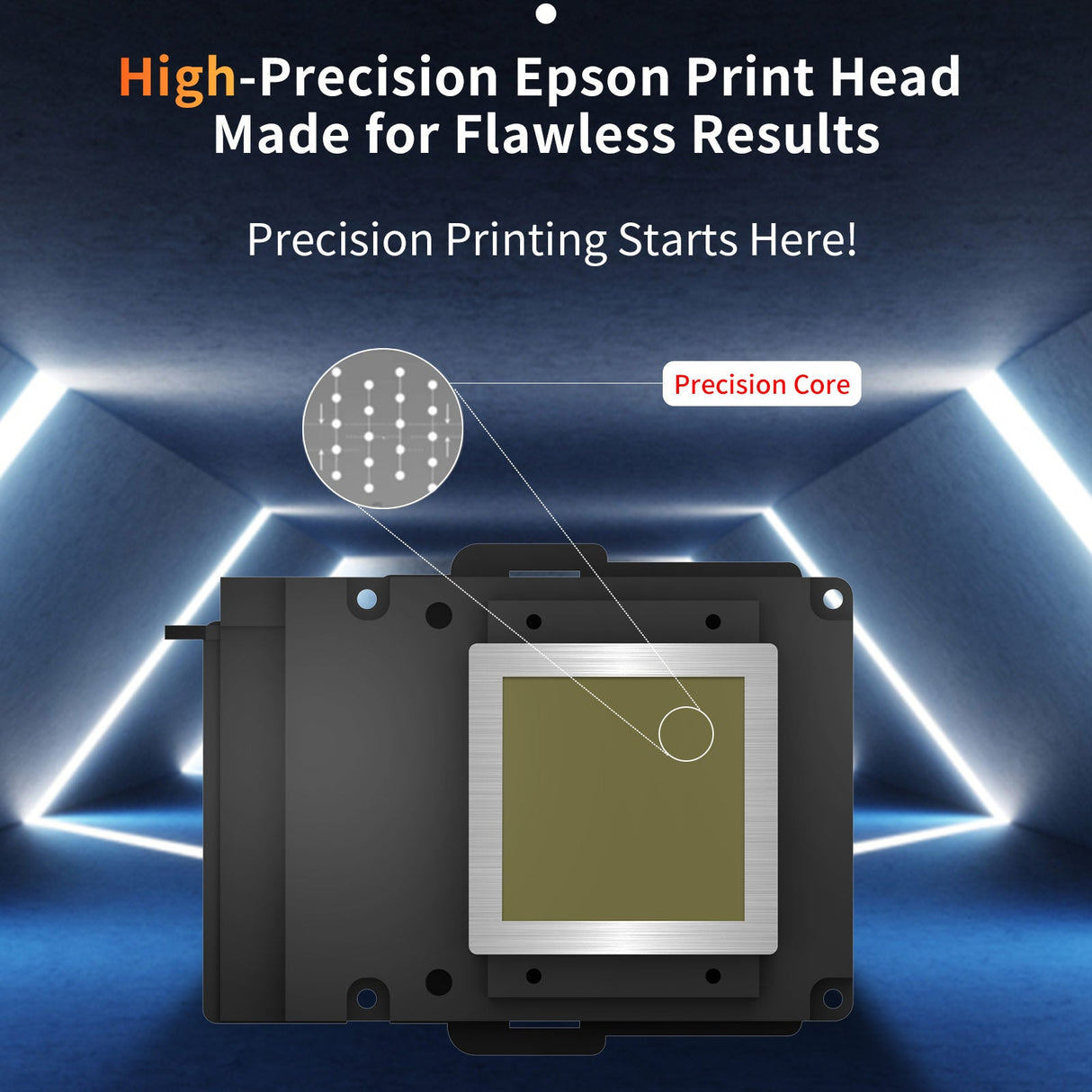

| Printhead | 1/2pcs Epson DX10 |
| Color | CMYKLcLm+WV |
| Resolution | 720-2880dpi |

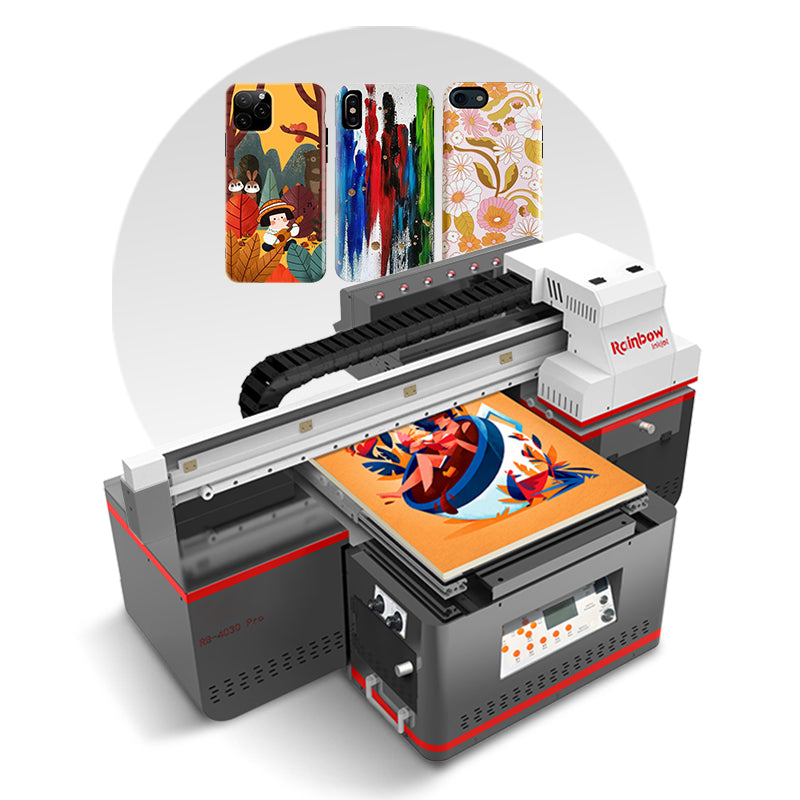

| Application | phone case, pen, card, wood, goofball, metal, glass, acrylic, PVC, canvas, ceramic, mug, bottle, cylinder, leather, etc. |
Description

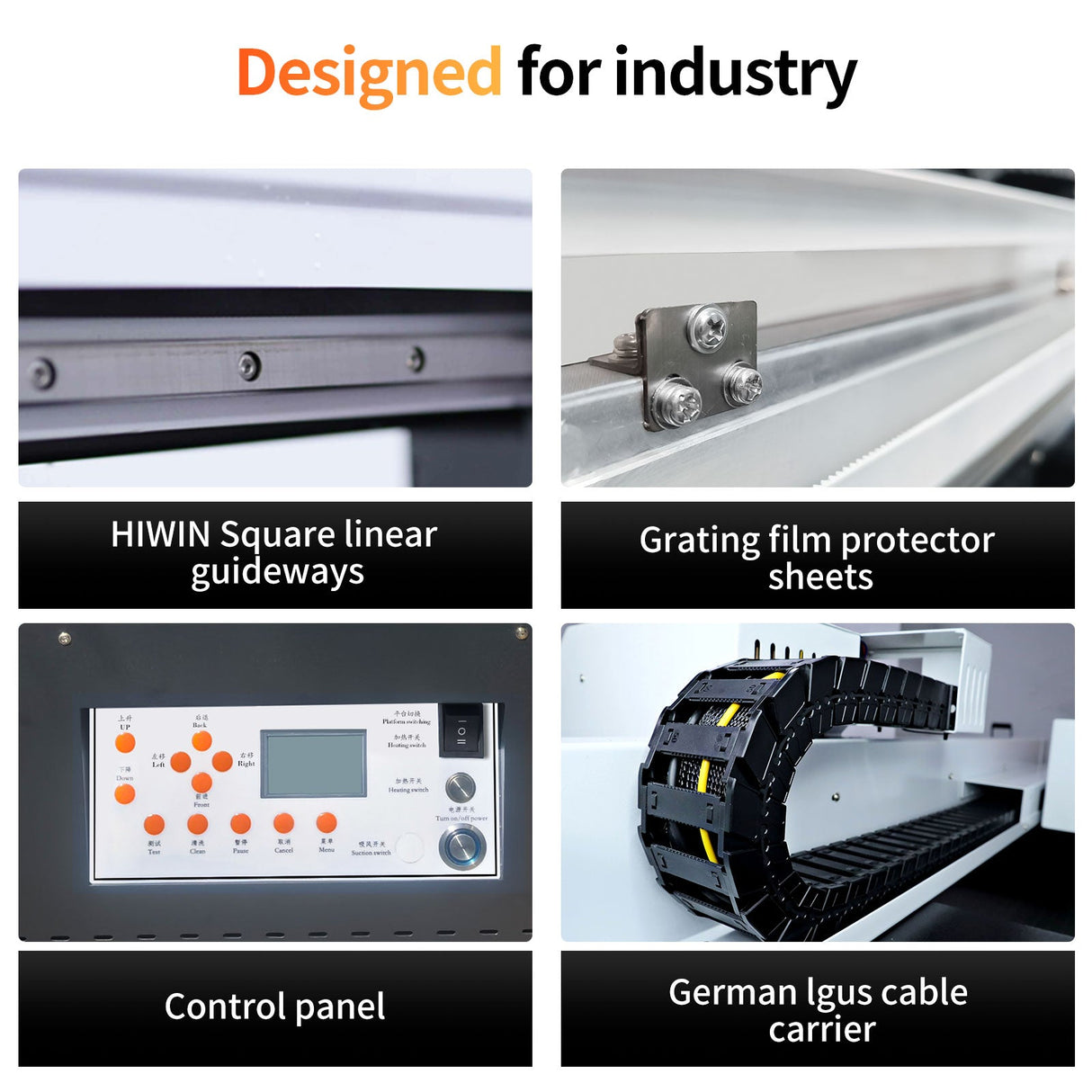

Hiwin Linear Guideway Integration in A3 UV Printer
The Rainbow RB-4030 Pro A3 UV printer features a meticulously designed motion system with Hiwin linear guideways, tailored for high-accuracy UV printing.
A single 4 cm Hiwin square rail is strategically positioned on the X-axis to ensure stability and silence during operation. In contrast, the Y-axis benefits from dual rails, providing enhanced smoothness for superior print quality. The Z-axis employs four rails to accommodate the vertical load efficiently, thereby ensuring consistent performance and prolonging the equipment’s service life.
Full Color Range and Finish Options for A3 UV Printer

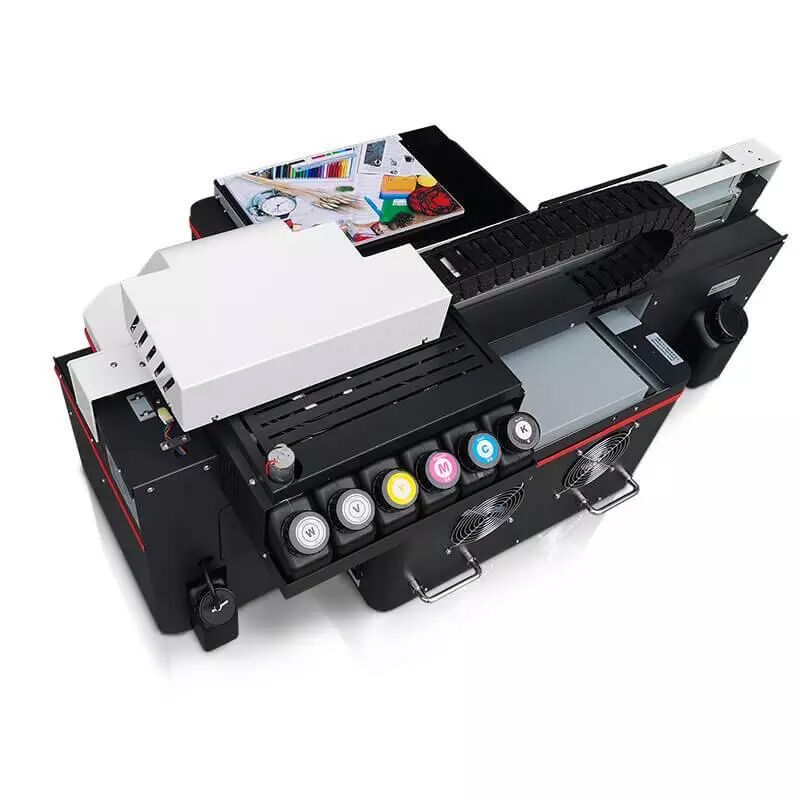

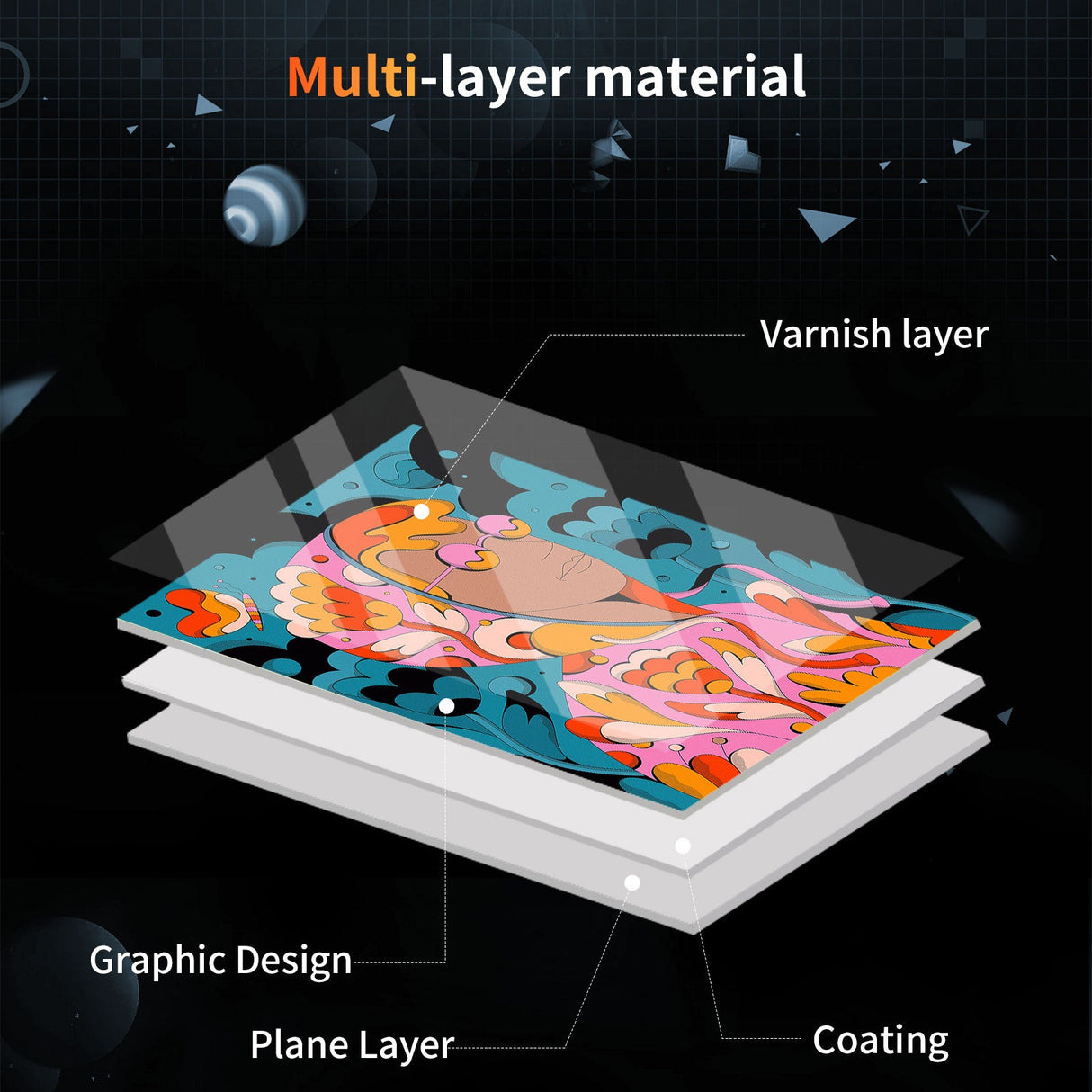

The Rainbow RB-4030 Pro offers a six-color CMYKLcLm ink configuration for improved color transition, essential for high-quality art reproductions.
The addition of varnish enables a glossy finish, providing depth and protection to printed works. It also features a 500ml ink reservoir for extended print runs and employs a white ink stirring system to ensure print quality
Igus Cable Carrier
Equipped with an Igus cable carrier imported from Germany, this component ensures smooth, quiet operation and is built for high durability and an extended service life.
Expanded Print Height Capacity
The RB-4030 Pro A3 UV printer is designed with a 15cm print height capacity, allowing for the accommodation of varied material thicknesses, from thin paper to thicker objects like phone cases, trophies, or signage. This extends the printer’s versatility for different printing needs without sacrificing print quality.

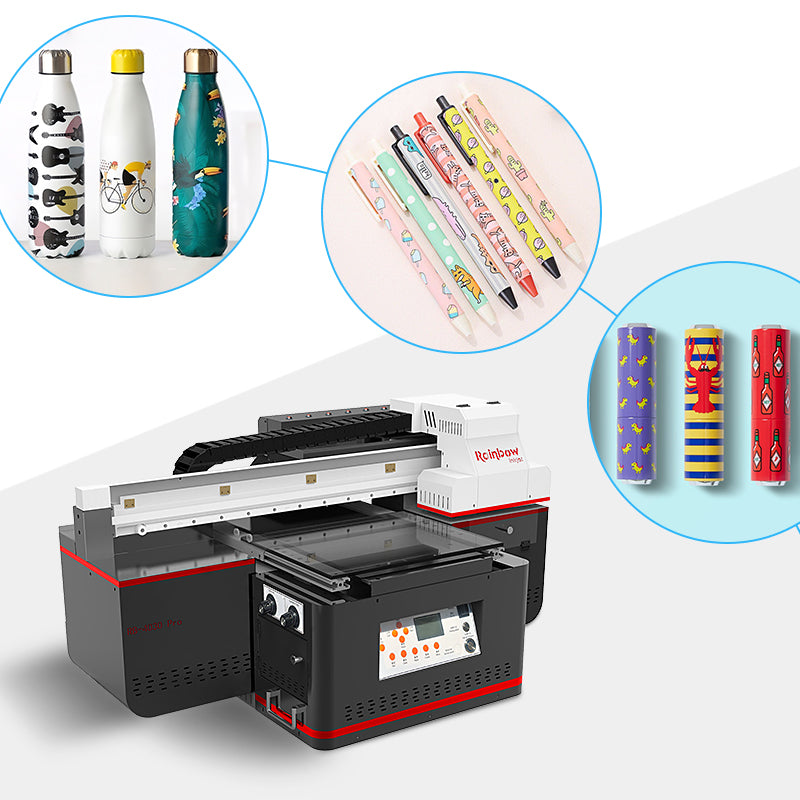

Rotary Device for Cylindrical Printing
The RB-4030 Pro A3 UV Printer features a robust aluminum alloy rotary device, designed for durability and precision. Equipped with an independent motor, it enables accurate rotation of cylindrical items like bottles and handle-equipped mugs without relying on platform friction.
This device allows for simultaneous placement of multiple objects, enhancing printing efficiency and accuracy, making it perfect for businesses looking to expand their printing capabilities beyond flat surfaces.
Front Control Panel Usability for A3 UV Printer
The RB-4030 Pro A3 UV printer’s front control panel is a central hub for operational efficiency, featuring intuitive controls for the printer carriage movement, platform adjustments, and beam positioning.
It simplifies processes such as running print tests, performing printhead cleanings, pausing, or canceling print jobs. Additionally, the panel includes a menu button and a display screen that provides real-time progress updates on printing tasks.
Print Height Detection Sensor
The RB-4030 Pro A3 UV printer features a print height detection sensor that is crucial for enhancing print quality and clarity. It assists in accurately adjusting the print height for different materials, both transparent and opaque, to avoid ink misting and to achieve sharp, detailed prints.
Encoder Strip Shield for A3 UV Printer
The RB-4030 Pro A3 UV printer is equipped with a durable metal encoder guard, strategically placed to protect the encoder film from exposure to ink splatter and dust accumulation. This ensures the encoder’s precision in tracking the carriage movement, which is critical for maintaining high print quality and accuracy.
Side Control Buttons
The RB-4030 Pro A3 UV printer’s side panel is outfitted with control buttons that allow for seamless switching between rotary and flatbed printing modes, catering to diverse printing requirements.
The panel also features a printhead heating function toggle, a critical feature that prevents ink clogging in colder conditions, ensuring a smooth ink flow. Additionally, an emergency stop button doubles as a daily power switch, providing both safety and convenience.
UV Lamp Power Control and Magnetic Access Windows
The RB-4030 Pro A3 UV printer is equipped with a UV lamp power control knob, enabling precise adjustment of the lamp’s intensity for optimal printing on heat-sensitive materials and fine-tuning of color depth and texture.
The printer also has four magnetic access windows. These windows facilitate easy opening for inspection and maintenance, allowing quick access to essential parts of the machine for efficient servicing and upkeep.
Integrated Cooling System with Air and Water Elements
The RB-4030 Pro A3 UV printer features a comprehensive cooling system, combining air and water cooling mechanisms. The water cooling efficiently reduces the temperature of the UV LED lamps, significantly extending their lifespan to approximately 50,000 hours. This equates to around five years of usage at an operational rate of 8 hours per day.
Simultaneously, the air cooling component targets the mainboard, enhancing system stability and enabling the printer to operate continuously for 24 hours without downtime.
Waste Ink Bottle with Level Alarm and Valve
The RB-4030 Pro A3 UV printer is equipped with a waste ink bottle featuring a liquid level alarm. This alarm emits a buzzing sound to alert users when the bottle is nearing full capacity, prompting timely cleaning.
Additionally, the printer includes a valve on the connected waste ink tube. Closing this valve places the printhead in a sealed state, which is particularly useful before extended periods of non-use, such as holidays, to prevent printhead clogging.
Specification
| Name | RB-4030 Pro | RB-4060 Plus | |
| Printhead | single/Dual Epson DX8 | Dual Epson DX8/4720 | |
| Resolution | 720*720dpi~720*2880dpi | ||
| Ink | Type | UV curable hard/soft ink | |
| Package size | 500ml per bottle | ||
| Ink supply system | CISS(500ml ink tank) | ||
| Consumption | 9-15ml/sqm | ||
| Ink stirring system | Available | ||
| Maximum printable area | Horizontal | 40*30cm(16*12inch;A3) | 40*60cm(16*24inch;A2) |
| Vertical | substrate 15cm(6inches) /rotary 8cm(3inches) | ||
| Media | Type | plastic, pvc, acrylic, glass, ceramic, metal, wood, leather, etc. | |
| Weight | ≤15kg | ||
| Holding method | Glass Table(standard)/Vacuum table(optional) | ||
| Software | RIP | Maintop6.1 | |
| Control | Wellprint | ||
| format | .tif/.jpg/.bmp/.gif/.tga/.psd/.psb/.ps/.eps/.pdf/.dcs/.ai/.eps/.svg | ||
| System | Windows XP/Win7/Win8/win10 | ||
| Interface | USB 3.0 | ||
| Language | English/Chinese | ||
| Power | Requirement | 50/60HZ 220V(±10%) ＜5A | |
| Consumption | 500W | 800W | |
| Dimension | Assembled | 63*101*56CM | 97*101*56cm |
| Package size | 120*80*88CM | 118*116*76cm | |
| Weight | net 55kg/ Gross 84kg | net 90kg/ Gross 140kg | |
Application
Shipping&Packaging
The machine will be packed in solid wooden box, suitable for international sea, air, or express shipping.
The package size:
The printer and powder shaker in one:120*80*88cm=0.84CBM
Package weight: 84kg
The printer and powder shaker in one:120*80*88cm=0.84CBM
Package weight: 84kg
Inquire for more information such as pricing and working videos.
Specification
| Name | RB-4030 Pro | RB-4060 Plus | |
| Printhead | single/Dual Epson DX8 | Dual Epson DX8/4720 | |
| Resolution | 720*720dpi~720*2880dpi | ||
| Ink | Type | UV curable hard/soft ink | |
| Package size | 500ml per bottle | ||
| Ink supply system | CISS(500ml ink tank) | ||
| Consumption | 9-15ml/sqm | ||
| Ink stirring system | Available | ||
| Maximum printable area | Horizontal | 40*30cm(16*12inch;A3) | 40*60cm(16*24inch;A2) |
| Vertical | substrate 15cm(6inches) /rotary 8cm(3inches) | ||
| Media | Type | plastic, pvc, acrylic, glass, ceramic, metal, wood, leather, etc. | |
| Weight | ≤15kg | ||
| Holding method | Glass Table(standard)/Vacuum table(optional) | ||
| Software | RIP | Maintop6.1 | |
| Control | Wellprint | ||
| format | .tif/.jpg/.bmp/.gif/.tga/.psd/.psb/.ps/.eps/.pdf/.dcs/.ai/.eps/.svg | ||
| System | Windows XP/Win7/Win8/win10 | ||
| Interface | USB 3.0 | ||
| Language | English/Chinese | ||
| Power | Requirement | 50/60HZ 220V(±10%) ＜5A | |
| Consumption | 500W | 800W | |
| Dimension | Assembled | 63*101*56CM | 97*101*56cm |
| Package size | 120*80*88CM | 118*116*76cm | |
| Weight | net 55kg/ Gross 84kg | net 90kg/ Gross 140kg | |
