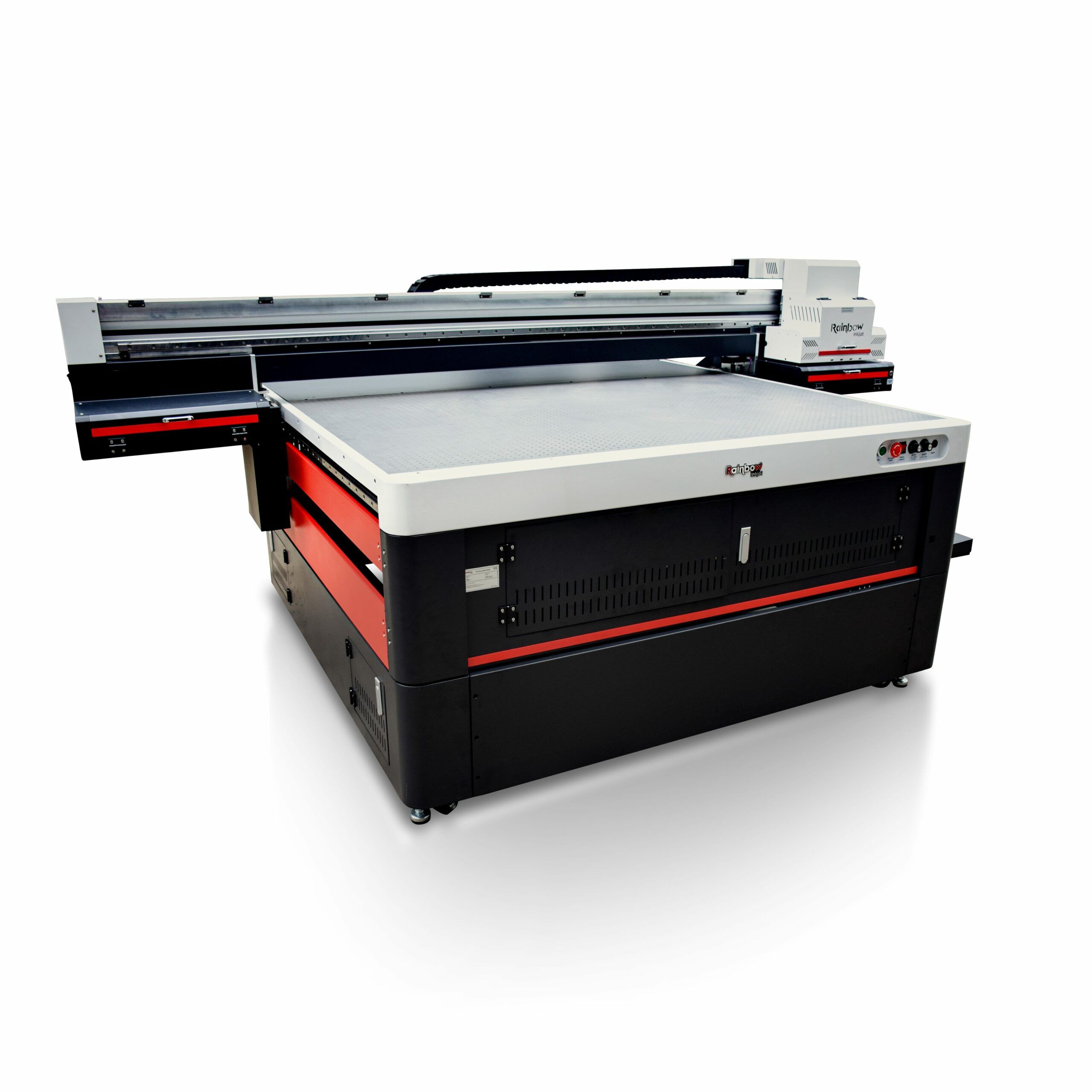

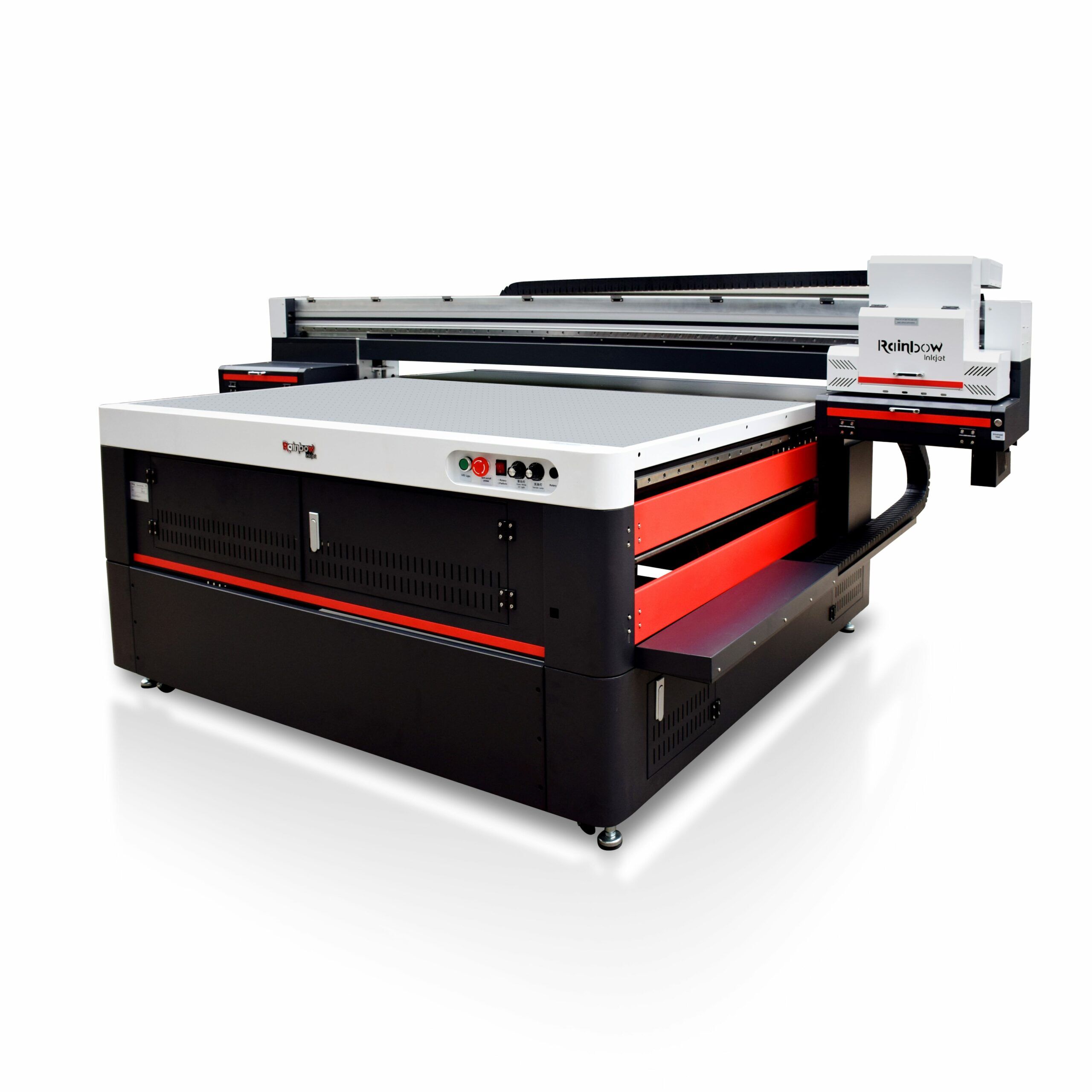

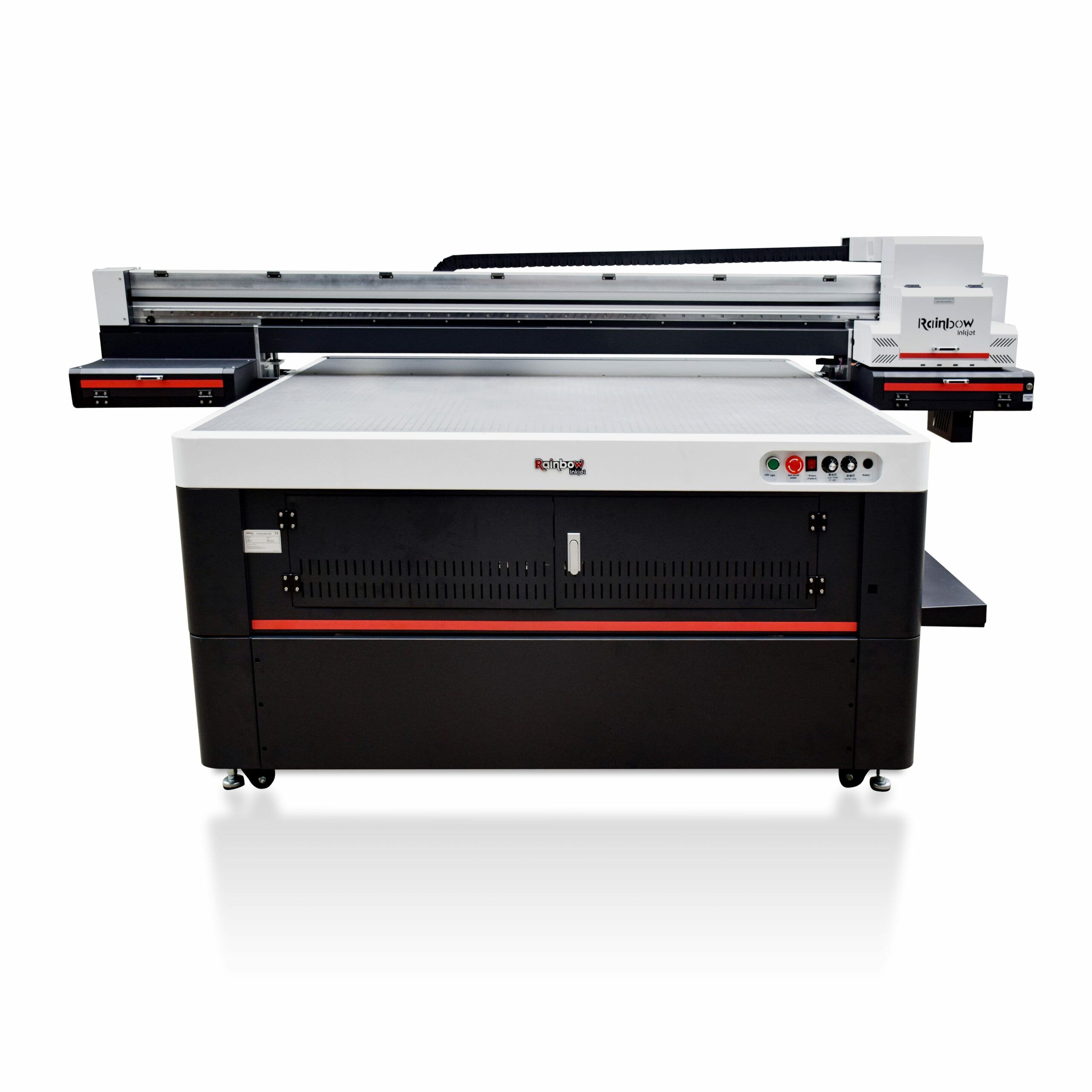

The RB-1610 A0 UV flatbed printer offers an economical choice with a generous printing area. It allows for direct printing on various materials such as metal, wood, PVC, plastic, glass, crystal, stone, and rotary products, thanks to its impressive maximum printing size of 62.9″ in width and 39.3” in length. This printer supports a range of effects, including varnish, matte, reverse print, fluorescence, and bronzing.
Additionally, the RB-1610 can directly print on film and then transfer the design to any material, enabling customization of curved and irregularly-shaped items. The inclusion of a vacuum suction table further enhances its capabilities by facilitating the printing of soft materials like leather, film, and soft PVC. The absence of tape during printing ensures easier positioning and a seamless result.
With its appealing industrial look, interior design options, and exceptional color performance, this model has already assisted numerous customers and is gaining popularity in the market.
Phone case, pen, card, wood, goofball, metal, glass, acrylic, PVC, canvas, ceramic, mug, bottle, cylinder, leather, etc.
The RB-1610 features robust Hiwin linear guideways, measuring 35mm in thickness for the X-axis, 2 pieces for the Y-axis, and 4 pieces for the Z-axis. In total, there are 7 industrial-level linear guideways incorporated into the printer.
These high-quality guideways significantly improve the stability of the printer during operation, resulting in enhanced printing accuracy and an extended lifespan for the machine.

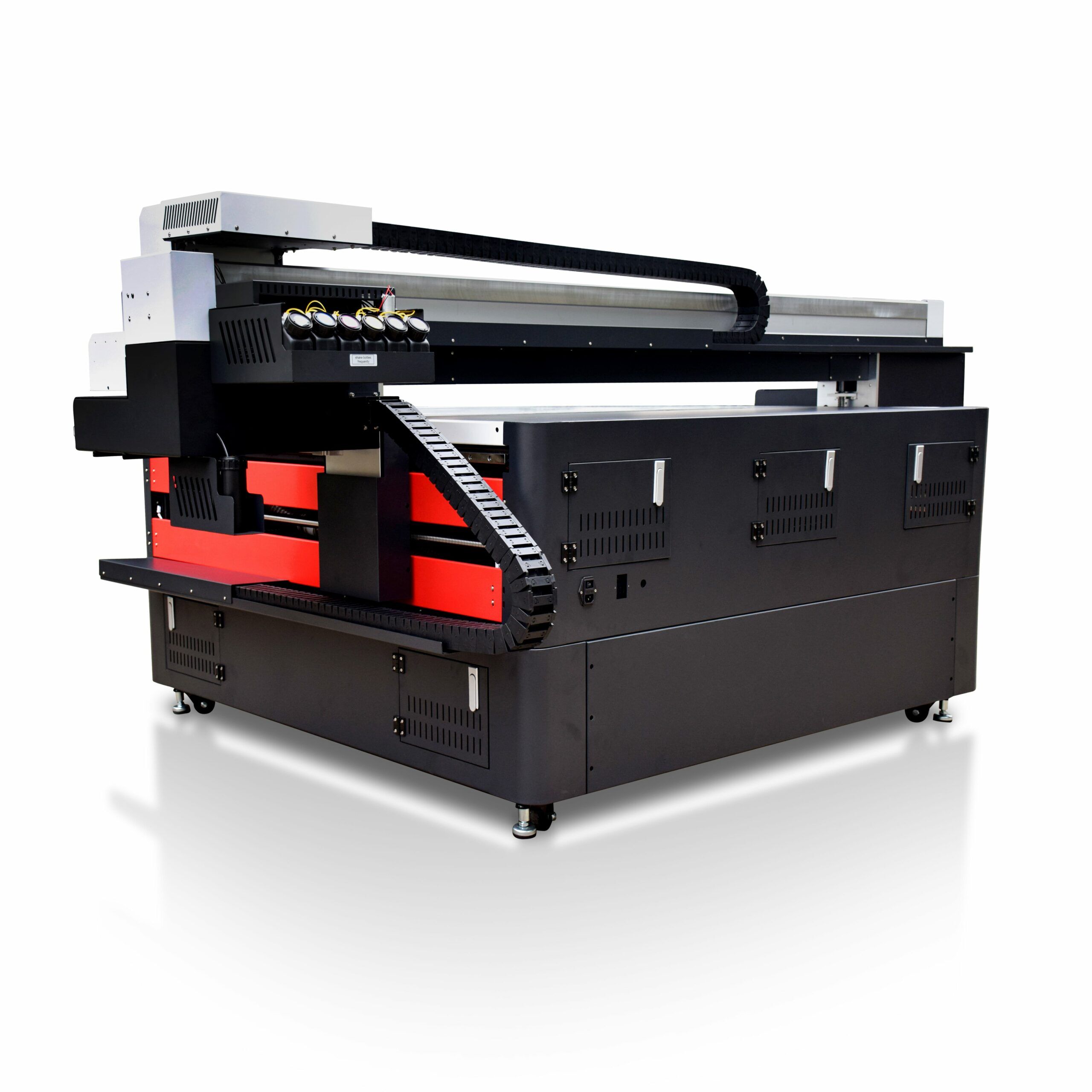

The RB-1610 is equipped with a German Igus cable carrier, which has been imported from Germany. This cable carrier ensures smooth and silent operation while safeguarding the ink tubes and cables during the printer carriage movement. Additionally, it boasts a long lifespan, contributing to the printer’s overall durability and reliability.
The RB-1610 is fitted with a sturdy aluminum suction table that is specially designed to accommodate the printing of soft materials and substrates like acrylic. The table features over 20 adjustable support screws, allowing for precise leveling, ensuring high-quality printing results.
Furthermore, the surface of the table undergoes a special treatment to make it scratch-proof, enhancing its durability and ensuring it can withstand the rigors of regular use.
The RB-1610 is equipped with industrial-level ball screws to facilitate the carriage beam’s forward-backward movement on the Y-axis, ensuring both stability and smoothness during operation. There are 2 pieces of ball screws dedicated to this purpose.
In addition, the Z-axis is supported by another 2 pieces of ball screws, which play a crucial role in maintaining the stability of the printer when achieving a print height of 25cm. These ball screws contribute to the overall reliability and precision of the RB-1610 during printing tasks.
The RB-1610 features a robust and height-adjustable carriage that is designed to move along the carriage beam smoothly. The carriage plate is manufactured using CNC milling, ensuring high integration and structural stability for optimal performance.
Additionally, the carriage is equipped with an anti-static device, which, when activated, effectively eliminates the static generated between the printheads and the table. This is crucial as static can interfere with the trajectory of ink droplets, potentially leading to blurred prints. The anti-static feature ensures precise and clear printing results, enhancing the overall print quality of the RB-1610.
The RB-1610 is equipped with a bulk ink Continuous Ink Supply System (CISS) that has a substantial ink volume of 750ml. This system is well-suited for extended periods of printing, reducing the need for frequent ink replenishment.
To enhance operational convenience, the printer is equipped with a low ink level alert device that notifies users when ink levels are running low, allowing for timely refills.
Moreover, the RB-1610 features a white ink stirring device that operates continuously. This function prevents the white ink from forming particles, ensuring a consistent and smooth ink flow, which is essential for achieving high-quality prints with white ink.
The RB-1610 is equipped with a robust and substantial vacuum suction table, constructed from aluminum and coated with an anti-scratch coating. This high-quality suction table is connected to a powerful 1100w suction fan, providing a strong and reliable suction force. As a result, items placed on the table are securely fixed in place, ensuring stability during the printing process.
Furthermore, the suction fan comes with a sound suppressor, which significantly reduces noise levels during operation. This feature ensures a more comfortable and quieter working environment for the staff, promoting a better and more pleasant printing experience.
The RB-1610 offers the convenience of using two aluminum rotary devices. One of these devices is specifically designed for printing on bottles, while the other is versatile and suitable for both mugs and bottles. Both rotary devices are equipped with independent motors, ensuring precise and accurate printing results.
These aluminum rotary devices allow for efficient and high-quality printing on cylindrical objects such as mugs and bottles, making the RB-1610 a versatile solution for customizing a wide range of products.
We are pleased to offer a sample printing service, providing you with the opportunity to see the printing process in action. We will create a video capturing the entire printing procedure and take high-resolution images to showcase the sample’s intricate details. This service will be completed within 1-2 working days.
If you are interested, please submit an inquiry, and kindly provide the following information:
Please note that if you require the sample to be mailed, you will be responsible for postage fees.
Q1: What materials can the UV printer print?
A: The UV printer is capable of printing on almost all kinds of materials, including phone cases, leather, wood, plastic, acrylic, pens, golf balls, metal, ceramics, glass, textiles, and fabrics, among others.
Q2: Can the UV printer print embossing 3D effect?
A: Yes, the UV printer can print embossing 3D effects. Please contact us for more information and printing videos.
Q3: Can the A0 UV flatbed printer print on rotary bottles and mugs?
A: Yes, the A0 UV flatbed printer can print on both bottles and mugs with handles using a rotary printing device.
Q4: Do printing materials require pre-coating?
A: Some materials, such as metal, glass, and acrylic, may require pre-coating to make the colors anti-scratch.
Q5: How can we start using the printer?
A: We will provide a detailed manual and teaching videos along with the printer package. Please read the manual and watch the teaching videos carefully, following the instructions strictly. If you have any questions, our technical support is available online via TeamViewer and video call.
Q6: What about the warranty?
A: We offer a 13-month warranty and lifelong technical support, excluding consumables like print heads and ink dampers.
Q7: What is the printing cost?
A: On average, printing one square meter requires approximately $1 in printing costs with our high-quality ink.
Q8: Where can I buy spare parts and inks?
A: All spare parts and ink will be available from us throughout the printer’s lifespan, or you can purchase them locally.
Q9: How should I maintain the printer?
A: The printer has an auto-cleaning and maintenance system. Before powering off the machine each time, please perform a normal cleaning to keep the print head wet. If you don’t use the printer for more than a week, it’s recommended to power on the machine three days later for a test and auto-cleaning.
