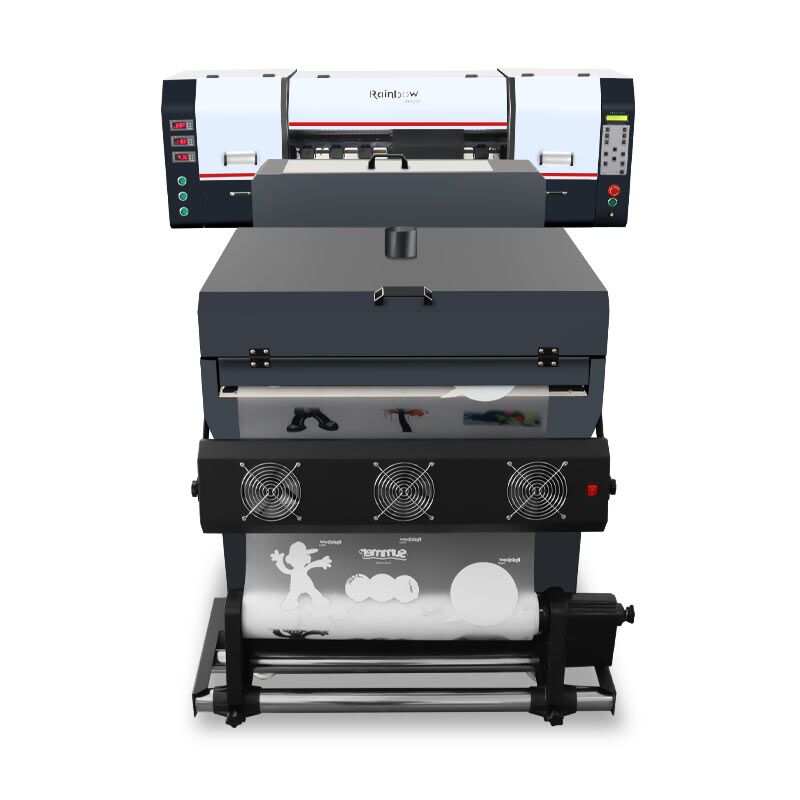

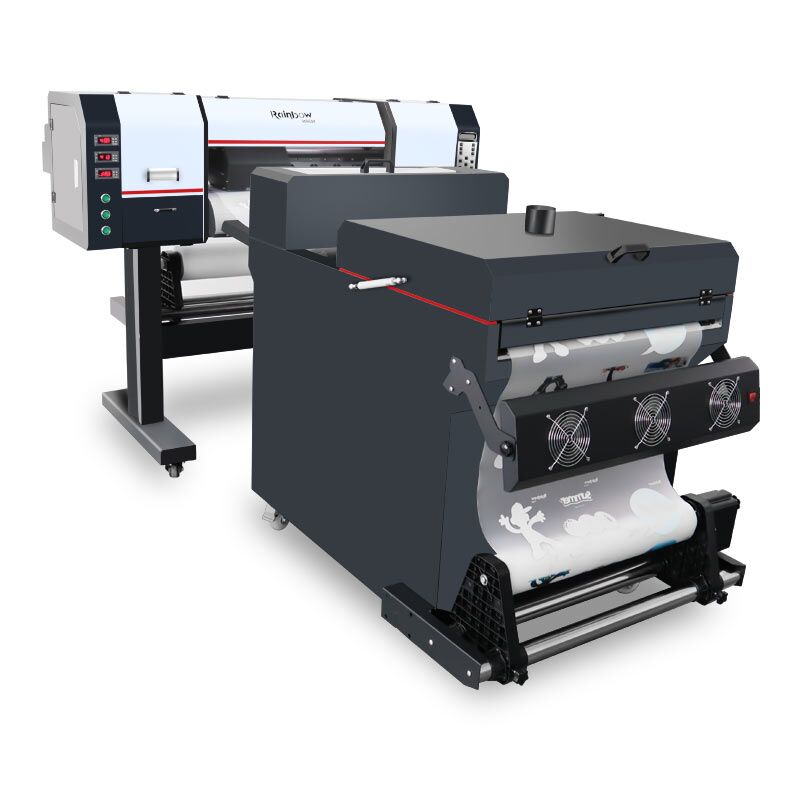

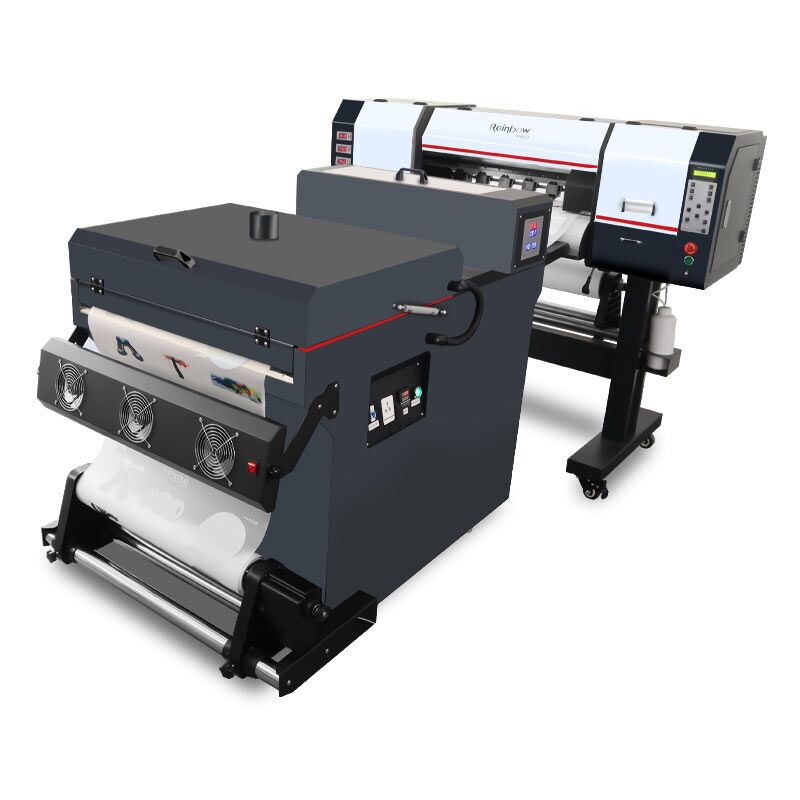

Nova 70 DTF Printer
Nova 70 is a 2022 newly designed DTF printer machine with a high level of integration and powerful capability. It has 2-3 pcs of Epson XP600/i3200 printheads which allows for industrial level output rate. The third printhead supports fluorescent ink, making it convenient to produce fluorescent prints just like normal printing works. The high-resolution setting makes the prints excellent in detail and sharpness. An industrial 70cm print width means a bigger room for operation and a considerable throughput speed. Inquire now for more details that may help with your business.
Consumable materials
Working process
Application
Product Description
Integrated DTF solution
Industrial level quality for industrial level production requirement. Solid machine body, wide bed size, integrated system for error-proof operation, precise printing, full powdering, efficient powder-melting and taking-up, all of which makes Nova 70 a flagship quality DTF printer.
The standard version is installed with 2pcs of Epson XP600 printheads, with the extra options of Epson 4720 and i3200 to meet avariety of requirements for output rate. It also supports the third printheads for fluorescent ink.
The CNC vacuum suction table can hold the film in place nicely, and prevent the film from touching and scratching the printheads.
The Extra-large pressure roller gives a proper friction to the film which makes the film-feeding, printing and taking-up more smooth.
The off-line white ink circulation device automatically turns on after the machine is powered off, saving the worry of white ink sinkage and printhead clog.
Three-stage heating for better attachment between the ink and film, and better powdering, which helps to get more vibrant prints. The temperature control precision is as close as 0.1℃.
Machine/Package Size
The machine will be packed in solid wooden box, suitable for international sea, air, or express shipping.
The package size:
The printer:2.2*0.73*0.72m
The printer:2.2*0.73*0.72m
The powder shaker:1.2*1.04*1.13m
Package weight:
Package weight:
The printer: 180kg
The powder shaker:300kg
Specification
| Model | Nova 70 DTF Printer | |
| Printing width | 70cm/27.5in | |
| Print head | XP600/i3200 | |
| Print head qty.（pcs） | 1/2/3pcs | |
| Suitable media | PET film | |
| Heating and drying function | Front guide plate heating, solidified upper drying, and cold air cooling function | |
| Printing speed | 3-10㎡/h | |
| Printing resolution | 720*4320dpi | |
| Print head cleaning | Automatic | |
| Platform suction adjustment | Available | |
| Printing interface | USB3.0 | |
| Working environment | Temperature 20－25℃ | |
| Relative humidity | 40-60% | |
| Software | Maintop/ PhotoPrint | |
| Operating system | XP/Win7/Win10/Win11 | |
| Rewinding function | Automatic induction rewinding | |
| Rated power | 250士5%W | |
| Machine size | 1.62*0.52*1.26m | |
| Machine weight | 140kg | |
Inquire for more information such as pricing and machine working videos.
